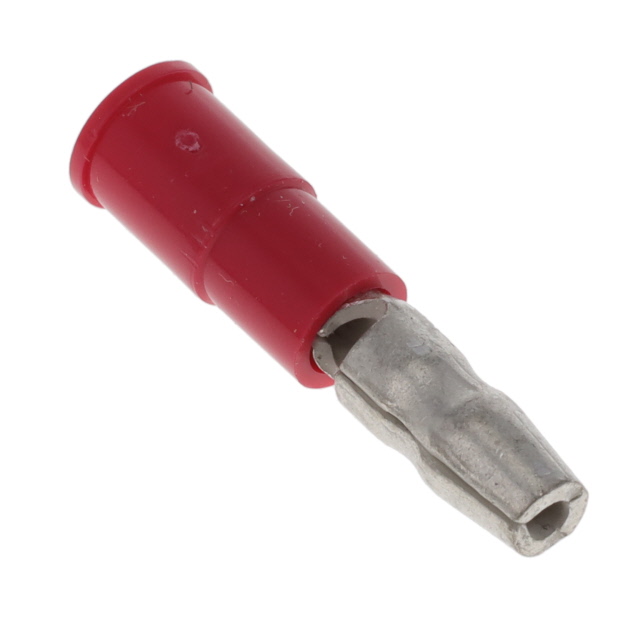

0190340052

Obsolete

Molex

CONN TERM PIN 18-22AWG 50/BAG

Search across all available documentation for this part.

Obsolete

Molex

CONN TERM PIN 18-22AWG 50/BAG

Technical Specifications

Parameters and characteristics for this part

Specification	0190340052

Contact Finish	Tin
Contact Material	Copper
Diameter - Barrel [diameter]	3.96 mm
Diameter - Barrel [diameter]	0.156 in
Insulation	Non-Mating End Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Barrel	0.44 in
Length - Barrel	11.18 mm
Length - Overall [x]	0.89 in
Length - Overall [x]	22.61 mm
Material - Insulation	Poly-Vinyl Chloride (PVC)
Terminal Type	Pin (Plug), Male
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Termination	Insulation	Material - Insulation	Terminal Type	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Length - Barrel	Length - Barrel	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Length - Barrel [x]	Length - Barrel [x]	Color
Molex 0190340010	Copper	0.175 in	4.45 mm	0.89 in	22.61 mm	Tin	Crimp	Non-Mating End Insulated	Poly-Vinyl Chloride (PVC)	Male Pin (Plug)	3.96 mm	0.156 in	0.44 in	11.18 mm
Molex 0190340052	Copper	0.145 "		0.89 in	22.61 mm	Tin	Crimp	Non-Mating End Insulated	Poly-Vinyl Chloride (PVC)	Male Pin (Plug)	3.96 mm	0.156 in	0.44 in	11.18 mm	22 AWG	17.5 AWG	3.68 mm
Molex 0190340007	Copper	0.175 in	4.45 mm	0.95 in	24.13 mm	Tin	Crimp	Non-Mating End Insulated	Poly-Vinyl Chloride (PVC)	Male Pin (Plug)
Molex 0190340005	Copper	0.145 "		0.89 in	22.61 mm	Tin	Crimp	Non-Mating End Insulated	Poly-Vinyl Chloride (PVC)	Male Pin (Plug)	3.96 mm	0.156 in	0.44 in	11.18 mm	22 AWG	17.5 AWG	3.68 mm
Molex 0190340002	Copper	0.145 "		0.95 in	24.13 mm	Tin	Crimp	Non-Mating End Insulated	Poly-Vinyl Chloride (PVC)	Male Pin (Plug)					22 AWG	17.5 AWG	3.68 mm
Molex 0190340009	Copper	0.45 in		0.89 in	22.61 mm	Tin	Crimp	Non-Mating End Insulated	Poly-Vinyl Chloride (PVC)	Male Pin (Plug)	3.96 mm	0.156 in	0.44 in	11.18 mm			11.43 mm
Molex 0190340004	Copper	0.14 in	3.56 mm	1.38 in	35.05 mm	Tin	Crimp	Non-Mating End Insulated	Nylon Polyamide (PA)	Male Pin (Plug)	3.96 mm	0.156 in						0.32 in	8.13 mm	Blue
