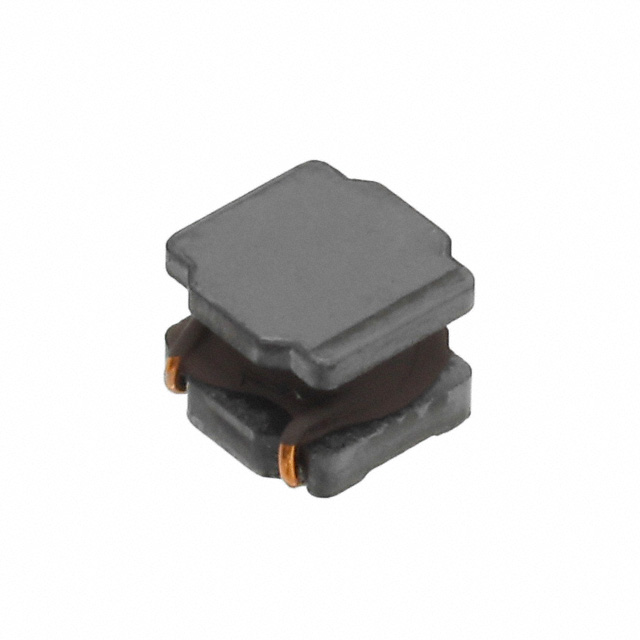

LQH6PPN1R0N43L
ObsoleteMurata Power Solutions Inc.
FIXED IND 1UH 4.3A 9 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LQH6PPN1R0N43L
ObsoleteMurata Power Solutions Inc.
FIXED IND 1UH 4.3A 9 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LQH6PPN1R0N43L |
|---|---|
| Current - Saturation (Isat) | 7.5 A |
| Current Rating (Amps) | 4.3 A |
| DC Resistance (DCR) | 9 mOhm |
| Frequency - Self Resonant | 110 MHz |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2424 (6060 Metric) |
| Shielding | Shielded |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [y] | 0.236 in |
| Size / Dimension [y] | 6 mm |
| Tolerance | 30 % |
| Type | Wirewound |
LQH6PPN Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current - Saturation (Isat) | Tolerance | Inductance Frequency - Test | DC Resistance (DCR) | Inductance | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) | Shielding | Frequency - Self Resonant | Package / Case | Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. | 85 °C | -40 °C | Surface Mount | 3.2 A | 20 % | 100 kHz | 28 mOhm | 6.8 µH | 2.85 A | 0.177 " | 4.5 mm | Shielded | 20 MHz | 2424 (6060 Metric) | Wirewound | 0.236 in | 6 mm | 0.236 in | 6 mm | |
Murata Power Solutions Inc. | 85 °C | -40 °C | Surface Mount | 1.1 A | 20 % | 100 kHz | 289 mOhm | 68 µH | 1 A | 0.177 " | 4.5 mm | Shielded | 5 MHz | 2424 (6060 Metric) | Wirewound | 0.236 in | 6 mm | 0.236 in | 6 mm | |
Murata Power Solutions Inc. | 85 °C | -40 °C | Surface Mount | 7.5 A | 30 % | 100 kHz | 9 mOhm | 1 µH | 4.3 A | 0.177 " | 4.5 mm | Shielded | 110 MHz | 2424 (6060 Metric) | Wirewound | 0.236 in | 6 mm | 0.236 in | 6 mm | |
Murata Power Solutions Inc. | 85 °C | -40 °C | Surface Mount | 1.6 A | 20 % | 100 kHz | 137 mOhm | 33 µH | 1.29 A | 0.177 " | 4.5 mm | Shielded | 6 MHz | 2424 (6060 Metric) | Wirewound | 0.236 in | 6 mm | 0.236 in | 6 mm | |
Murata Power Solutions Inc. | 85 °C | -40 °C | Surface Mount | 2.2 A | 20 % | 100 kHz | 65 mOhm | 15 µH | 2.2 A | 0.177 " | 4.5 mm | Shielded | 10 MHz | 2424 (6060 Metric) | Wirewound | 0.236 in | 6 mm | 0.236 in | 6 mm | |
Murata Power Solutions Inc. | 85 °C | -40 °C | Surface Mount | 1.25 A | 20 % | 100 kHz | 47 µH | 1.1 A | 0.177 " | 4.5 mm | Shielded | 6 MHz | 2424 (6060 Metric) | Wirewound | 0.236 in | 6 mm | 0.236 in | 6 mm | 230 mOhm | |
Murata Power Solutions Inc. | 85 °C | -40 °C | Surface Mount | 4 A | 20 % | 100 kHz | 20 mOhm | 4.7 ÁH | 3.2 A | 0.177 " | 4.5 mm | Shielded | 25 MHz | 2424 (6060 Metric) | Wirewound | 0.236 in | 6 mm | 0.236 in | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LQH6PPN Series
1 µH Shielded Wirewound Inductor 4.3 A 9mOhm 2424 (6060 Metric)
