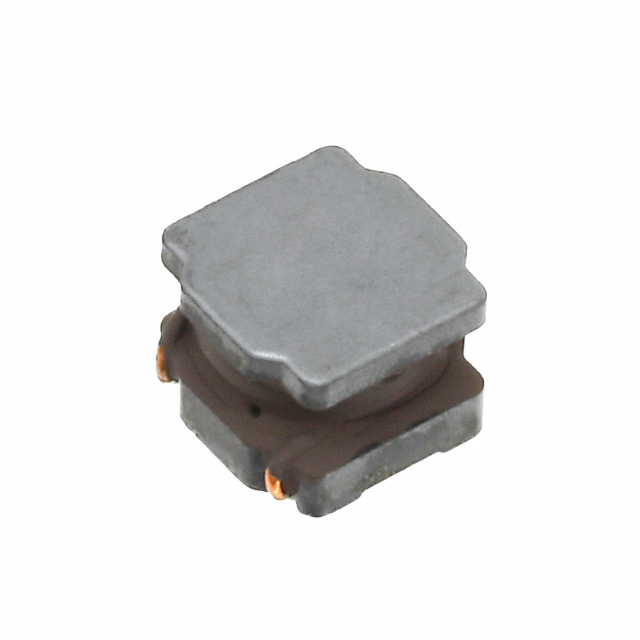

LQH6PPN6R8M43L

Obsolete

Murata Power Solutions Inc.

FIXED IND 6.8UH 2.85A 28MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQH6PPN6R8M43L

Obsolete

Murata Power Solutions Inc.

FIXED IND 6.8UH 2.85A 28MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQH6PPN6R8M43L

Current - Saturation (Isat)	3.2 A
Current Rating (Amps)	2.85 A
DC Resistance (DCR)	28 mOhm
Frequency - Self Resonant	20 MHz
Height - Seated (Max)	4.5 mm
Height - Seated (Max) [Max]	0.177 "
Inductance	6.8 µH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	2424 (6060 Metric)
Shielding	Shielded
Size / Dimension [x]	0.236 in
Size / Dimension [x]	6 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Tolerance	20 %
Type	Wirewound

LQH6PPN Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Saturation (Isat)	Tolerance	Inductance Frequency - Test	DC Resistance (DCR)	Inductance	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max)	Shielding	Frequency - Self Resonant	Package / Case	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. LQH6PPN6R8M43L	85 °C	-40 °C	Surface Mount	3.2 A	20 %	100 kHz	28 mOhm	6.8 µH	2.85 A	0.177 "	4.5 mm	Shielded	20 MHz	2424 (6060 Metric)	Wirewound	0.236 in	6 mm	0.236 in	6 mm
Murata Power Solutions Inc. LQH6PPN680M43L	85 °C	-40 °C	Surface Mount	1.1 A	20 %	100 kHz	289 mOhm	68 µH	1 A	0.177 "	4.5 mm	Shielded	5 MHz	2424 (6060 Metric)	Wirewound	0.236 in	6 mm	0.236 in	6 mm
Murata Power Solutions Inc. LQH6PPN1R0N43L	85 °C	-40 °C	Surface Mount	7.5 A	30 %	100 kHz	9 mOhm	1 µH	4.3 A	0.177 "	4.5 mm	Shielded	110 MHz	2424 (6060 Metric)	Wirewound	0.236 in	6 mm	0.236 in	6 mm
Murata Power Solutions Inc. LQH6PPN330M43L	85 °C	-40 °C	Surface Mount	1.6 A	20 %	100 kHz	137 mOhm	33 µH	1.29 A	0.177 "	4.5 mm	Shielded	6 MHz	2424 (6060 Metric)	Wirewound	0.236 in	6 mm	0.236 in	6 mm
Murata Power Solutions Inc. LQH6PPN150M43L	85 °C	-40 °C	Surface Mount	2.2 A	20 %	100 kHz	65 mOhm	15 µH	2.2 A	0.177 "	4.5 mm	Shielded	10 MHz	2424 (6060 Metric)	Wirewound	0.236 in	6 mm	0.236 in	6 mm
Murata Power Solutions Inc. LQH6PPN470M43L	85 °C	-40 °C	Surface Mount	1.25 A	20 %	100 kHz		47 µH	1.1 A	0.177 "	4.5 mm	Shielded	6 MHz	2424 (6060 Metric)	Wirewound	0.236 in	6 mm	0.236 in	6 mm	230 mOhm
Murata Power Solutions Inc. LQH6PPN4R7M43L	85 °C	-40 °C	Surface Mount	4 A	20 %	100 kHz	20 mOhm	4.7 ÁH	3.2 A	0.177 "	4.5 mm	Shielded	25 MHz	2424 (6060 Metric)	Wirewound	0.236 in	6 mm	0.236 in	6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LQH6PPN Series

6.8 µH Shielded Wirewound Inductor 2.85 A 28mOhm 2424 (6060 Metric)
