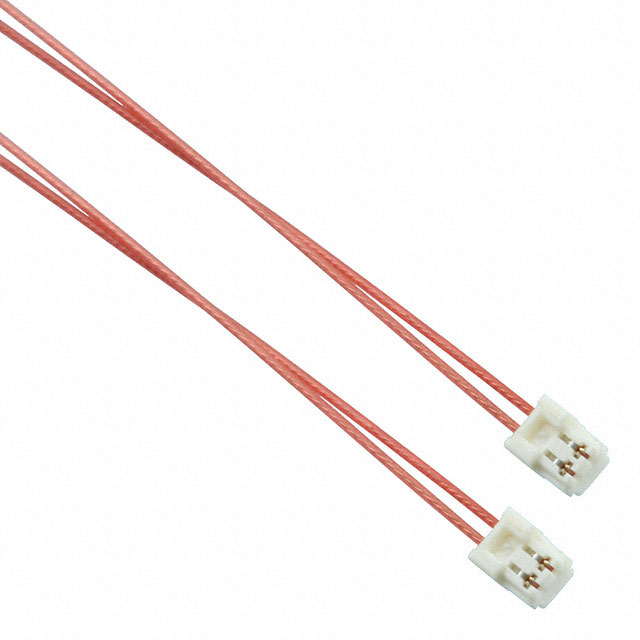

A02XSR02XSR36R295A

Active

JST Sales America Inc.

JUMPER HARNESS

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER HARNESS

Technical Specifications

Parameters and characteristics for this part

Part	Color	Connector Type	Number of Positions	Contact Finish	Number of Rows	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]	Cable Termination	Length	Length	Length	Length
JST Sales America Inc. A02XSR02XSR36R295A	Individual Red	Socket to Socket Reversed	2	Tin	1	0.024 "	0.6 mm	11.61 "	0.968 '	295 mm	IDC
JST Sales America Inc. A02XSR02XSR36R102B	Individual Red	Socket to Socket	2	Tin	1	0.024 "	0.6 mm	4 "	0.333 ft	101.6 mm	IDC
JST Sales America Inc. A02XSR02XSR36R254B	Individual Red	Socket to Socket	2	Tin	1	0.024 "	0.6 mm				IDC	10 in	0.833 ft	254 mm
JST Sales America Inc. A02XSR02XSR36R51B	Individual Red	Socket to Socket	2	Tin	1	0.024 "	0.6 mm				IDC	2 "	0.167 '	50.8 mm
JST Sales America Inc. A02XSR02XSR36R254A	Individual Red	Socket to Socket Reversed	2	Tin	1	0.024 "	0.6 mm				IDC	10 in	0.833 ft	254 mm
JST Sales America Inc. A02XSR02XSR36R203A	Individual Red	Socket to Socket Reversed	2	Tin	1	0.024 "	0.6 mm				IDC	8 in	0.667 ft	203.2 mm
JST Sales America Inc. A02XSR02XSR36R152B	Individual Red	Socket to Socket	2	Tin	1	0.024 "	0.6 mm				IDC	6 "		152.4 mm	0.5 '
JST Sales America Inc. A02XSR02XSR36R295B	Individual Red	Socket to Socket	2	Tin	1	0.024 "	0.6 mm	11.61 "	0.968 '	295 mm	IDC
JST Sales America Inc. A02XSR02XSR36R152A	Individual Red	Socket to Socket Reversed	2	Tin	1	0.024 "	0.6 mm				IDC	6 "		152.4 mm	0.5 '
JST Sales America Inc. A02XSR02XSR36R102A	Individual Red	Socket to Socket Reversed	2	Tin	1	0.024 "	0.6 mm	4 "	0.333 ft	101.6 mm	IDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.968' (295.00mm, 11.61")
