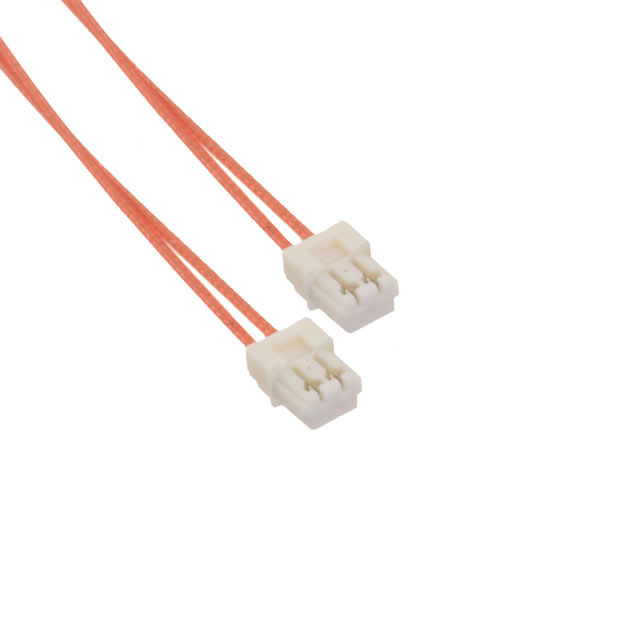

A02XSR02XSR36R102B

Active

JST Sales America Inc.

JUMPER 02XSR-36S - 02XSR-36S 4"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 02XSR-36S - 02XSR-36S 4"

Technical Specifications

Parameters and characteristics for this part

Part	Color	Connector Type	Number of Positions	Contact Finish	Number of Rows	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]	Cable Termination	Length	Length	Length	Length
JST Sales America Inc. A02XSR02XSR36R295A	Individual Red	Socket to Socket Reversed	2	Tin	1	0.024 "	0.6 mm	11.61 "	0.968 '	295 mm	IDC
JST Sales America Inc. A02XSR02XSR36R102B	Individual Red	Socket to Socket	2	Tin	1	0.024 "	0.6 mm	4 "	0.333 ft	101.6 mm	IDC
JST Sales America Inc. A02XSR02XSR36R254B	Individual Red	Socket to Socket	2	Tin	1	0.024 "	0.6 mm				IDC	10 in	0.833 ft	254 mm
JST Sales America Inc. A02XSR02XSR36R51B	Individual Red	Socket to Socket	2	Tin	1	0.024 "	0.6 mm				IDC	2 "	0.167 '	50.8 mm
JST Sales America Inc. A02XSR02XSR36R254A	Individual Red	Socket to Socket Reversed	2	Tin	1	0.024 "	0.6 mm				IDC	10 in	0.833 ft	254 mm
JST Sales America Inc. A02XSR02XSR36R203A	Individual Red	Socket to Socket Reversed	2	Tin	1	0.024 "	0.6 mm				IDC	8 in	0.667 ft	203.2 mm
JST Sales America Inc. A02XSR02XSR36R152B	Individual Red	Socket to Socket	2	Tin	1	0.024 "	0.6 mm				IDC	6 "		152.4 mm	0.5 '
JST Sales America Inc. A02XSR02XSR36R295B	Individual Red	Socket to Socket	2	Tin	1	0.024 "	0.6 mm	11.61 "	0.968 '	295 mm	IDC
JST Sales America Inc. A02XSR02XSR36R152A	Individual Red	Socket to Socket Reversed	2	Tin	1	0.024 "	0.6 mm				IDC	6 "		152.4 mm	0.5 '
JST Sales America Inc. A02XSR02XSR36R102A	Individual Red	Socket to Socket Reversed	2	Tin	1	0.024 "	0.6 mm	4 "	0.333 ft	101.6 mm	IDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Cable Assembly Rectangular Socket to Socket 0.333' (101.60mm, 4.00")
