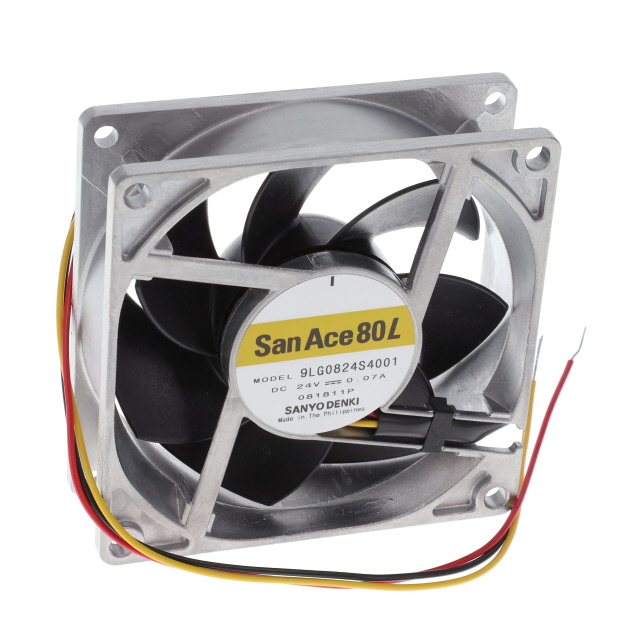

9LG0824S4001

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

9LG0824S4001

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9LG0824S4001

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Material - Blade	Plastic
Material - Frame	Aluminum
Power (Watts)	1.68 W
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Width [y]	25 mm

9LG0824 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Termination	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	RPM	Voltage - Rated	Lifetime @ Temp.	Air Flow	Air Flow	Bearing Type	Material - Blade	Power (Watts)	Noise	Material - Frame	Approval Agency	Width [y]	Fan Type	Features	Weight	Weight
Sanyo Denki America Inc. 9LG0824H4002	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	42.3 Pa	0.17 in H2O	2 Wire Leads	50 mA	21.6 VDC	26.4 VDC	3700 RPM	24 VDC	180000 Hrs	1.02 m³/min	36.3 CFM	Ball	Plastic	1.2 W	31 dB(A)	Aluminum	CSA TUV UL	25 mm	Tubeaxial
Sanyo Denki America Inc. 9LG0824S4001					80 mm	80 mm			3 Wire Leads					24 VDC				Ball	Plastic	1.68 W		Aluminum		25 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9LG0824P4H001	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	42.3 Pa	0.17 in H2O	4 Wire Leads	50 mA	21.6 VDC	26.4 VDC	3700 RPM	24 VDC	180000 Hrs	1.02 m³/min	36.3 CFM	Ball	Plastic	1.2 W	31 dB(A)	Aluminum	CSA TUV UL	25 mm	Tubeaxial	PWM Control Speed Sensor (Tach)	130.18 g	0.287 lb
Sanyo Denki America Inc. 9LG0824P4J001	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	176.9 Pa	0.71 in H2O	4 Wire Leads	0.28 A	21.6 VDC	26.4 VDC	7400 RPM	24 VDC	180000 Hrs	2.04 m³/min	73 CFM	Ball	Plastic	6.72 W	49 dB	Aluminum	CSA TUV UL	25 mm	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	130.18 g	0.287 lb
Sanyo Denki America Inc. 9LG0824H4001	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	42.3 Pa	0.17 in H2O	3 Wire Leads	50 mA	21.6 VDC	26.4 VDC	3700 RPM	24 VDC	180000 Hrs	1.02 m³/min	36.3 CFM	Ball	Plastic	1.2 W	31 dB(A)	Aluminum	CSA TUV UL	25 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 90.11
		10	$ 73.01
		40	$ 67.71
