9LG0824H4001

Active

Sanyo Denki America Inc.

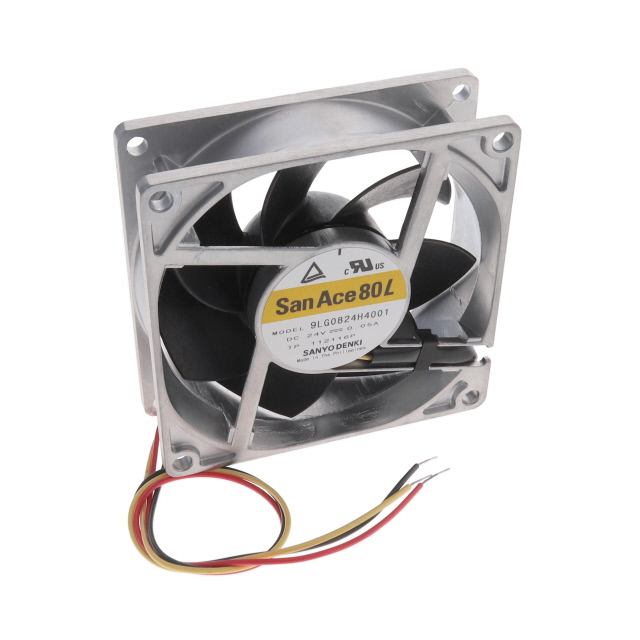

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System Long Life Fan Handling Instructions for Fan Motors +1

9LG0824H4001

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System Long Life Fan Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9LG0824H4001

Air Flow	36.3 CFM
Air Flow	1.02 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	50 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	180000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	31 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.2 W
RPM	3700 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	42.3 Pa
Static Pressure	0.17 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	21.6 VDC
Width [y]	25 mm

9LG0824 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Termination	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	RPM	Voltage - Rated	Lifetime @ Temp.	Air Flow	Air Flow	Bearing Type	Material - Blade	Power (Watts)	Noise	Material - Frame	Approval Agency	Width [y]	Fan Type	Features	Weight	Weight
Sanyo Denki America Inc. 9LG0824H4002	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	42.3 Pa	0.17 in H2O	2 Wire Leads	50 mA	21.6 VDC	26.4 VDC	3700 RPM	24 VDC	180000 Hrs	1.02 m³/min	36.3 CFM	Ball	Plastic	1.2 W	31 dB(A)	Aluminum	CSA TUV UL	25 mm	Tubeaxial
Sanyo Denki America Inc. 9LG0824S4001					80 mm	80 mm			3 Wire Leads					24 VDC				Ball	Plastic	1.68 W		Aluminum		25 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9LG0824P4H001	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	42.3 Pa	0.17 in H2O	4 Wire Leads	50 mA	21.6 VDC	26.4 VDC	3700 RPM	24 VDC	180000 Hrs	1.02 m³/min	36.3 CFM	Ball	Plastic	1.2 W	31 dB(A)	Aluminum	CSA TUV UL	25 mm	Tubeaxial	PWM Control Speed Sensor (Tach)	130.18 g	0.287 lb
Sanyo Denki America Inc. 9LG0824P4J001	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	176.9 Pa	0.71 in H2O	4 Wire Leads	0.28 A	21.6 VDC	26.4 VDC	7400 RPM	24 VDC	180000 Hrs	2.04 m³/min	73 CFM	Ball	Plastic	6.72 W	49 dB	Aluminum	CSA TUV UL	25 mm	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	130.18 g	0.287 lb
Sanyo Denki America Inc. 9LG0824H4001	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	42.3 Pa	0.17 in H2O	3 Wire Leads	50 mA	21.6 VDC	26.4 VDC	3700 RPM	24 VDC	180000 Hrs	1.02 m³/min	36.3 CFM	Ball	Plastic	1.2 W	31 dB(A)	Aluminum	CSA TUV UL	25 mm	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)
