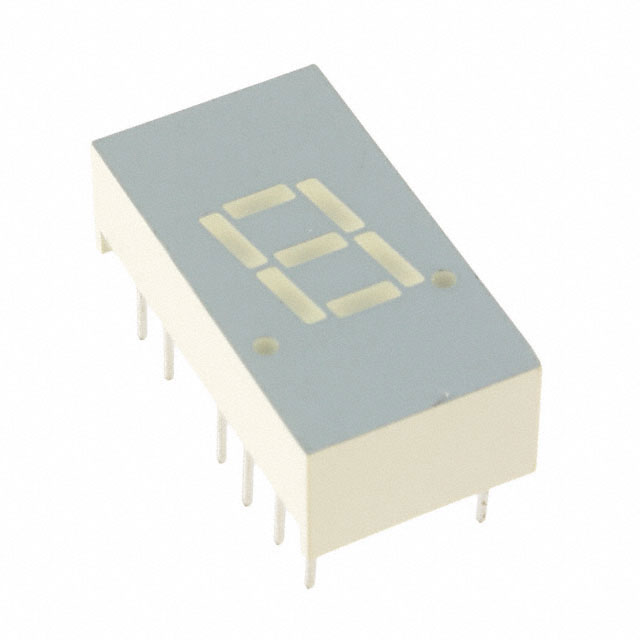

SA03-11EWA

Active

Kingbright

7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 7.62MM, ROHS COMPLIANT PACKAGE-14

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SA03-11EWA

Active

Kingbright

7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 7.62MM, ROHS COMPLIANT PACKAGE-14

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA03-11EWA

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	8.1 mcd
Number of Characters [custom]	1
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.24 in
Size / Dimension [x]	6.1 mm
Size / Dimension [y]	10.16 mm
Size / Dimension [y]	0.4 in
Size / Dimension [z]	0.75 in
Size / Dimension [z]	19.06 mm
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	627 nm

SA03-11 Series

Part	Package / Case	Package / Case [y]	Package / Case [x]	Millicandela Rating	Number of Characters [custom]	Display Type	Voltage - Forward (Vf) (Typ)	Color	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Test	Power Dissipation (Max) [Max]	Common Pin	Digit/Alpha Size	Digit/Alpha Size
Kingbright SA03-11SRWA	14-DIP	7.62 mm	0.3 "	42 mcd	1	7-Segment	1.85 V	Red	660 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	75 mw	Common Anode	0.3 in	7.62 mm
Kingbright SA03-11SURKWA	14-DIP	7.62 mm	0.3 "	67 mcd	1	7-Segment	1.95 V	Red	645 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	75 mw	Common Anode	0.3 in	7.62 mm
Kingbright SA03-11GWA	14-DIP	7.62 mm	0.3 "	11 mcd	1	7-Segment	2.2 V	Green	565 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	62.5 mW	Common Anode	0.3 in	7.62 mm
Kingbright SA03-11EWA	14-DIP	7.62 mm	0.3 "	8.1 mcd	1	7-Segment	2 V	Red	627 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	75 mw	Common Anode	0.3 in	7.62 mm
Kingbright SA03-11SYKWA	14-DIP	7.62 mm	0.3 "	100 mcd	1	7-Segment	2 V	Yellow	590 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	75 mw	Common Anode	0.3 in	7.62 mm
Kingbright SA03-11CGKWA	14-DIP	7.62 mm	0.3 "		1	7-Segment	2.1 V	Green		0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	75 mw	Common Anode	0.3 in	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.34
		26	$ 1.56
		104	$ 1.20
		520	$ 1.09
		1014	$ 0.93
		2002	$ 0.88
		5018	$ 0.86
		10010	$ 0.85

Description

General part information

SA03-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) 14-DIP (0.300", 7.62mm)
