SA03-11GWA

Active

Kingbright

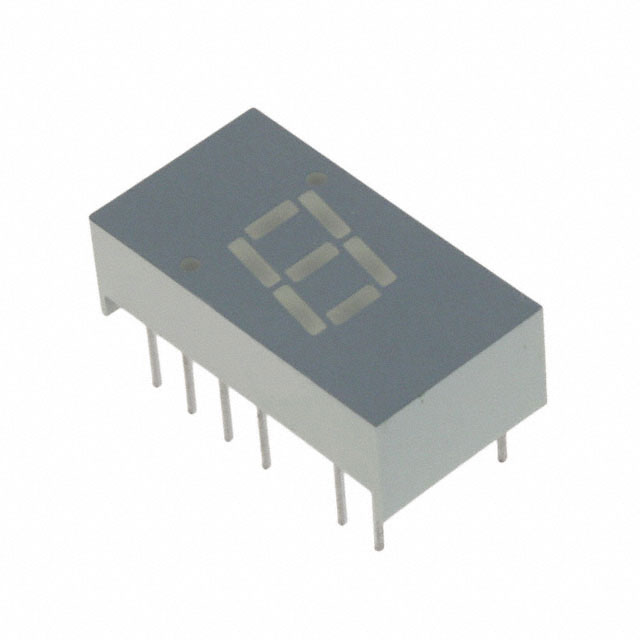

DISPLAY 7SEG 0.3" SGL GRN 14DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SA03-11GWA

Active

Kingbright

DISPLAY 7SEG 0.3" SGL GRN 14DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA03-11GWA

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	11 mcd
Number of Characters [custom]	1
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	0.24 in
Size / Dimension [x]	6.1 mm
Size / Dimension [y]	10.16 mm
Size / Dimension [y]	0.4 in
Size / Dimension [z]	0.75 in
Size / Dimension [z]	19.06 mm
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

SA03-11 Series

Part	Package / Case	Package / Case [y]	Package / Case [x]	Millicandela Rating	Number of Characters [custom]	Display Type	Voltage - Forward (Vf) (Typ)	Color	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Test	Power Dissipation (Max) [Max]	Common Pin	Digit/Alpha Size	Digit/Alpha Size
Kingbright SA03-11SRWA	14-DIP	7.62 mm	0.3 "	42 mcd	1	7-Segment	1.85 V	Red	660 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	75 mw	Common Anode	0.3 in	7.62 mm
Kingbright SA03-11SURKWA	14-DIP	7.62 mm	0.3 "	67 mcd	1	7-Segment	1.95 V	Red	645 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	75 mw	Common Anode	0.3 in	7.62 mm
Kingbright SA03-11GWA	14-DIP	7.62 mm	0.3 "	11 mcd	1	7-Segment	2.2 V	Green	565 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	62.5 mW	Common Anode	0.3 in	7.62 mm
Kingbright SA03-11EWA	14-DIP	7.62 mm	0.3 "	8.1 mcd	1	7-Segment	2 V	Red	627 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	75 mw	Common Anode	0.3 in	7.62 mm
Kingbright SA03-11SYKWA	14-DIP	7.62 mm	0.3 "	100 mcd	1	7-Segment	2 V	Yellow	590 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	75 mw	Common Anode	0.3 in	7.62 mm
Kingbright SA03-11CGKWA	14-DIP	7.62 mm	0.3 "		1	7-Segment	2.1 V	Green		0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	20 mA	75 mw	Common Anode	0.3 in	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.17
		26	$ 1.45
		104	$ 1.11
		520	$ 1.01
		1014	$ 0.86
		2002	$ 0.82
		5018	$ 0.80
		10010	$ 0.79

Description

General part information

SA03-11 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.2V 20mA 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) 14-DIP (0.300", 7.62mm)
