499-80-256-10-009101

Active

PRECI-DIP SA

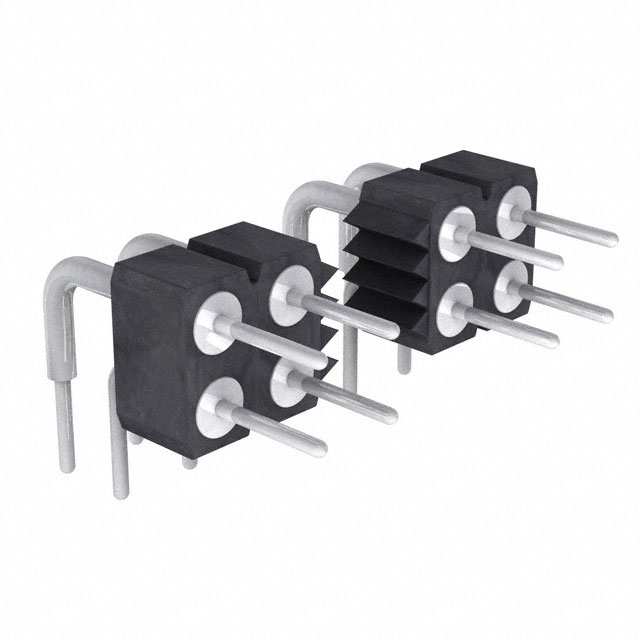

CONN HEADER R/A 56POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

499-80-256-10-009101

Active

PRECI-DIP SA

CONN HEADER R/A 56POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	499-80-256-10-009101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

499-80 Series

Part	Voltage Rating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Post	Number of Positions	Number of Rows	Contact Type	Insulation Color	Insulation Material	Connector Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Termination	Mounting Type	Contact Length - Post	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Contact Material	Number of Positions Loaded	Current Rating (Amps)	Contact Shape
PRECI-DIP SA 499-80-234-10-009101	150 VDC	0.1 in	2.54 mm	UL94 V-0	Tin	34	2	Male Pin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	2.54 mm	0.1 in	-55 °C	125 °C	Unshrouded	Solder	Through Hole Right Angle	3.2 mm	0.126 in	4 mm	0.157 in	Brass	All	3 A	Circular
PRECI-DIP SA 499-80-220-10-009101	150 VDC	0.1 in	2.54 mm	UL94 V-0	Tin	20	2	Male Pin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	2.54 mm	0.1 in	-55 °C	125 °C	Unshrouded	Solder	Through Hole Right Angle	3.2 mm	0.126 in	4 mm	0.157 in	Brass	All	3 A	Circular
PRECI-DIP SA 499-80-246-10-009101	150 VDC	0.1 in	2.54 mm	UL94 V-0	Tin	46	2	Male Pin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	2.54 mm	0.1 in	-55 °C	125 °C	Unshrouded	Solder	Through Hole Right Angle	3.2 mm	0.126 in	4 mm	0.157 in	Brass	All	3 A	Circular
PRECI-DIP SA 499-80-272-10-009101	150 VDC	0.1 in	2.54 mm	UL94 V-0	Tin	72	2	Male Pin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	2.54 mm	0.1 in	-55 °C	125 °C	Unshrouded	Solder	Through Hole Right Angle	3.2 mm	0.126 in	4 mm	0.157 in	Brass	All	3 A	Circular
PRECI-DIP SA 499-80-238-10-009101	150 VDC	0.1 in	2.54 mm	UL94 V-0	Tin	38	2	Male Pin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	2.54 mm	0.1 in	-55 °C	125 °C	Unshrouded	Solder	Through Hole Right Angle	3.2 mm	0.126 in	4 mm	0.157 in	Brass	All	3 A	Circular
PRECI-DIP SA 499-80-204-10-009101	150 VDC	0.1 in	2.54 mm	UL94 V-0	Tin	4	2	Male Pin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	2.54 mm	0.1 in	-55 °C	125 °C	Unshrouded	Solder	Through Hole Right Angle	3.2 mm	0.126 in	4 mm	0.157 in	Brass	All	3 A	Circular
PRECI-DIP SA 499-80-226-10-009101	150 VDC	0.1 in	2.54 mm	UL94 V-0	Tin	26	2	Male Pin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	2.54 mm	0.1 in	-55 °C	125 °C	Unshrouded	Solder	Through Hole Right Angle	3.2 mm	0.126 in	4 mm	0.157 in	Brass	All	3 A	Circular
PRECI-DIP SA 499-80-218-10-009101	150 VDC	0.1 in	2.54 mm	UL94 V-0	Tin	18	2	Male Pin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	2.54 mm	0.1 in	-55 °C	125 °C	Unshrouded	Solder	Through Hole Right Angle	3.2 mm	0.126 in	4 mm	0.157 in	Brass	All	3 A	Circular
PRECI-DIP SA 499-80-222-10-009101	150 VDC	0.1 in	2.54 mm	UL94 V-0	Tin	22 positions	2	Male Pin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	2.54 mm	0.1 in	-55 °C	125 °C	Unshrouded	Solder	Through Hole Right Angle	3.2 mm	0.126 in	4 mm	0.157 in	Brass	All	3 A	Circular
PRECI-DIP SA 499-80-256-10-009101	150 VDC	0.1 in	2.54 mm	UL94 V-0	Tin	56	2	Male Pin	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	Push-Pull	2.54 mm	0.1 in	-55 °C	125 °C	Unshrouded	Solder	Through Hole Right Angle	3.2 mm	0.126 in	4 mm	0.157 in	Brass	All	3 A	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	128	$ 7.27

Description

General part information

499-80 Series

Connector Header Through Hole, Right Angle 56 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
