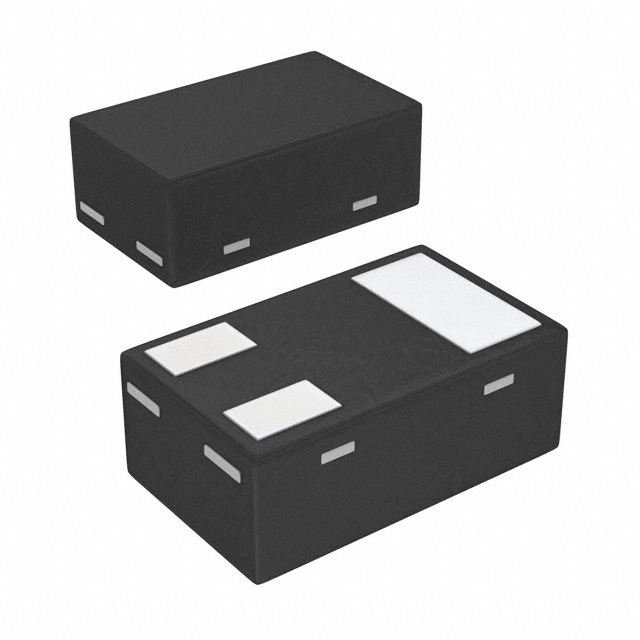

2SC6026CT-GR,L3F

Active

Toshiba Semiconductor and Storage

TRANS NPN 50V 0.1A CST3

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

TRANS NPN 50V 0.1A CST3

Technical Specifications

Parameters and characteristics for this part

Specification	2SC6026CT-GR,L3F

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 hFE
Frequency - Transition	60 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SOT-883, SC-101
Power - Max [Max]	100 mW
Supplier Device Package	CST3
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Operating Temperature	Power - Max [Max]	Mounting Type	Frequency - Transition	Transistor Type	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max) [Max]	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce
Toshiba Semiconductor and Storage 2SC6026CT-GR,L3F	50 V	100 nA	CST3	150 °C	100 mW	Surface Mount	60 MHz	NPN	250 mV	100 mA	SC-101 SOT-883	200 hFE
Toshiba Semiconductor and Storage 2SC6026MFVGR,L3F	50 V	100 nA	VESM	150 °C	150 mW	Surface Mount	60 MHz	NPN	250 mV	150 mA	SOT-723	200 hFE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN 50 V 100 mA 60MHz 100 mW Surface Mount CST3
