SFW5R-1STE1LF
ActiveAmphenol ICC (FCI)

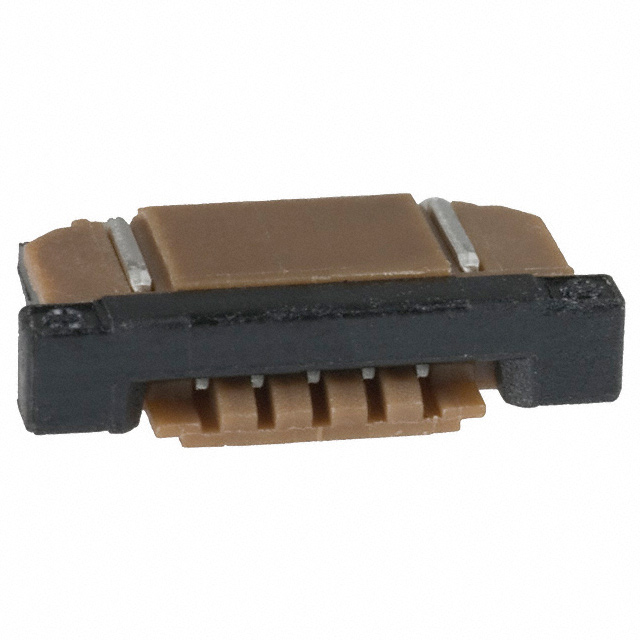

CONN FFC FPC BOTTOM 5POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFW5R-1STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC BOTTOM 5POS 1MM R/A
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW5R-1STE1LF |
|---|---|
| Actuator Color | Brown |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Notched |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Housing Color | Brown |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 100 V |
