SFW5R-3STE1LF
ActiveAmphenol ICC (FCI)

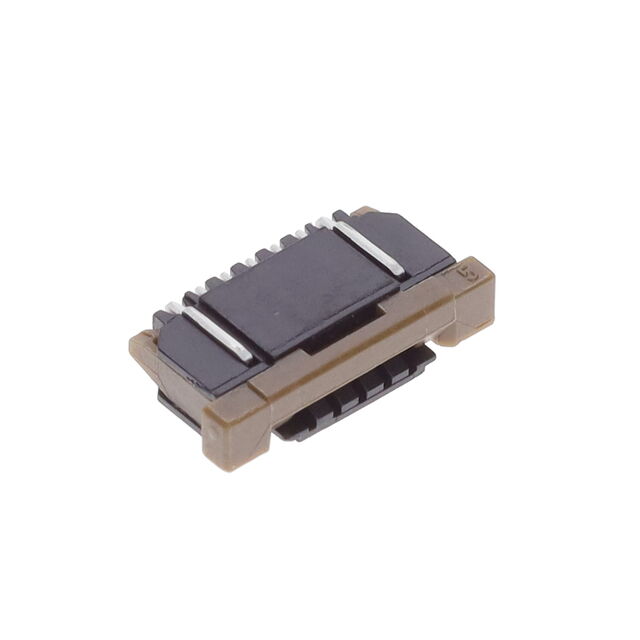

CONN FFC FPC BOTTOM 5POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFW5R-3STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC BOTTOM 5POS 1MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW5R-3STE1LF |
|---|---|
| Actuator Color | Black |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Tapered, Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Housing Color | Black |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 100 V |
SFW5R Series
| Part | Material Flammability Rating | Height Above Board [z] | Height Above Board [z] | Cable End Type | Housing Color | Actuator Material | Locking Feature | Mating Cycles | Housing Material | Contact Material | Actuator Color | Voltage Rating | Termination | Connector/Contact Type | Flat Flex Type | Pitch [x] | Pitch [x] | Mounting Type | FFC, FCB Thickness [z] | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | FFC, FCB Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | UL94 V-0 | 0.106 in | 2.7 mm | Straight Tapered | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Black | 100 V | Solder | Contacts Top | FFC FPC | 0.039 in | 1 mm | Surface Mount Right Angle | 0.3 mm 0.33 mm | Tin | 105 ░C | -55 °C | |
Amphenol ICC (FCI) | UL94 V-0 | 0.106 in | 2.7 mm | Tapered | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Black | 100 V | Solder | Contacts Top | FPC | 0.039 in | 1 mm | Surface Mount Right Angle | Gold | 105 ░C | -55 °C | 0.33 mm | |
Amphenol ICC (FCI) | UL94 V-0 | 0.106 in | 2.7 mm | Straight Tapered | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Black | 100 V | Solder | Contacts Bottom | FFC FPC | 0.039 in | 1 mm | Surface Mount Right Angle | 0.3 mm 0.33 mm | Tin | 105 ░C | -55 °C | |
Amphenol ICC (FCI) | UL94 V-0 | 0.106 in | 2.7 mm | Notched | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Brown | 100 V | Solder | Contacts Bottom | FFC FPC | 0.039 in | 1 mm | Surface Mount Right Angle | 0.3 mm 0.33 mm | Tin | 105 ░C | -55 °C | |
Amphenol ICC (FCI) | UL94 V-0 | 0.106 in | 2.7 mm | Straight Tapered | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Black | 100 V | Solder | Contacts Bottom | FPC | 0.039 in | 1 mm | Surface Mount Right Angle | Gold | 105 ░C | -55 °C | 0.3 mm | |
Amphenol ICC (FCI) | UL94 V-0 | 0.106 in | 2.7 mm | Straight Tapered | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Black | Solder | Contacts Bottom | FFC FPC | 0.039 in | 1 mm | Surface Mount Right Angle | 0.3 mm 0.33 mm | Tin Alloy | |||||
Amphenol ICC (FCI) | UL94 V-0 | 0.106 in | 2.7 mm | Tapered | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Black | 100 V | Solder | Contacts Top | FPC | 0.039 in | 1 mm | Surface Mount Right Angle | Gold | 105 ░C | -55 °C | 0.33 mm | ||
Amphenol ICC (FCI) | UL94 V-0 | 0.106 in | 2.7 mm | Straight Tapered | Black | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Black | 100 V | Solder | Contacts Bottom | FFC FPC | 0.039 in | 1 mm | Surface Mount Right Angle | 0.3 mm 0.33 mm | Tin | 105 ░C | -55 °C | |
Amphenol ICC (FCI) | UL94 V-0 | 0.106 in | 2.7 mm | Straight Tapered | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Black | Solder | Contacts Top | FFC FPC | 0.039 in | 1 mm | Surface Mount Right Angle | 0.3 mm 0.33 mm | Tin Alloy | |||||
Amphenol ICC (FCI) | UL94 V-0 | 0.106 in | 2.7 mm | Notched | Black | Polyphenylene Sulfide (PPS) Glass Filled | Slide Lock | 20 | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Brown | 100 V | Solder | Contacts Bottom | FPC | 0.039 in | 1 mm | Surface Mount Right Angle | Tin | 105 ░C | -55 °C | 0.33 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.32 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 2000 | $ 0.19 | ||
Description
General part information
SFW5R Series
5 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
