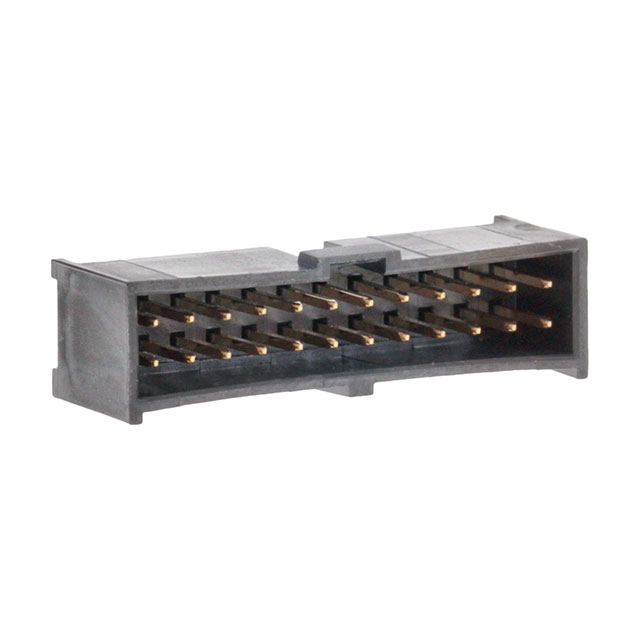

0901301224

Active

Molex

CONN HEADER VERT 24POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0901301224

Active

Molex

CONN HEADER VERT 24POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0901301224

Applications	Automotive, General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Mating	0.266 in
Contact Length - Mating	6.75 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	0.429 in
Insulation Height	10.9 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

90130 Series

Part	Connector Type	Termination	Applications	Contact Finish - Post	Contact Type	Number of Positions Loaded	Mounting Type	Fastening Type	Number of Rows	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Style	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating
Molex 0901301140	Header	Solder	Automotive General Purpose	Tin	Male Pin	All	Through Hole	Latch Holder	2	Black	2.54 mm	0.1 in	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board to Cable/Wire	Brass	118.1 µin	3 µm	0.114 in	2.9 mm	0.429 in	10.9 mm	40	Square	0.266 in	6.75 mm	Polyester Glass Filled
Molex 0901303130	Header	Solder	Automotive General Purpose	Tin	Male Pin	All	Through Hole Right Angle	Latch Holder	2	Black	2.54 mm	0.1 in	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board to Cable/Wire	Brass	118.1 µin	3 µm	0.114 in	2.9 mm	0.384 in	9.75 mm	30	Square	0.266 in	6.75 mm	Polyester Glass Filled
Molex 0901301234	Header	Solder	Automotive General Purpose	Tin	Male Pin	All	Through Hole	Latch Holder	2	Black	2.54 mm	0.1 in	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board to Cable/Wire	Brass	0.38 µm		0.114 in	2.9 mm	0.429 in	10.9 mm	34	Square	0.266 in	6.75 mm	Polyester Glass Filled	Gold	3 µm	118.1 µin	15 µin
Molex 901303234
Molex 0901303140	Header	Solder	Automotive General Purpose	Tin	Male Pin	All	Through Hole Right Angle	Latch Holder	2	Black	2.54 mm	0.1 in	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board to Cable/Wire	Brass	118.1 µin	3 µm	0.114 in	2.9 mm	0.384 in	9.75 mm	40	Square	0.266 in	6.75 mm	Polyester Glass Filled
Molex 0901301230	Header	Solder	Automotive General Purpose	Tin	Male Pin	All	Through Hole	Latch Holder	2	Black	2.54 mm	0.1 in	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board to Cable/Wire	Brass	0.38 µm		0.114 in	2.9 mm	0.429 in	10.9 mm	30	Square	0.266 in	6.75 mm	Polyester Glass Filled	Gold	3 µm	118.1 µin	15 µin
Molex 0901303214	Header	Solder	Automotive General Purpose	Tin	Male Pin	All	Through Hole Right Angle	Latch Holder	2	Black	2.54 mm	0.1 in	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board to Cable/Wire	Brass	0.38 µm		0.114 in	2.9 mm	0.384 in	9.75 mm	14	Square	0.266 in	6.75 mm	Polyester Glass Filled	Gold	3 µm	118.1 µin	15 µin
Molex 0901301218	Header	Solder	Automotive General Purpose	Tin	Male Pin	All	Through Hole	Latch Holder	2	Black	2.54 mm	0.1 in	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board to Cable/Wire	Brass	0.38 µm		0.114 in	2.9 mm	0.429 in	10.9 mm	18	Square	0.266 in	6.75 mm	Polyester Glass Filled	Gold	3 µm	118.1 µin	15 µin
Molex 0901301224	Header	Solder	Automotive General Purpose	Tin	Male Pin	All	Through Hole	Latch Holder	2	Black	2.54 mm	0.1 in	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board to Cable/Wire	Brass	0.38 µm		0.114 in	2.9 mm	0.429 in	10.9 mm	24	Square	0.266 in	6.75 mm	Polyester Glass Filled	Gold	3 µm	118.1 µin	15 µin
Molex 0901303106	Header	Solder	Automotive General Purpose	Tin	Male Pin	All	Through Hole Right Angle	Latch Holder	2	Black	2.54 mm	0.1 in	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board to Cable/Wire	Brass	118.1 µin	3 µm	0.114 in	2.9 mm	0.384 in	9.75 mm	6	Square	0.266 in	6.75 mm	Polyester Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.17
		10	$ 3.67
		80	$ 2.94

Description

General part information

90130 Series

Connector Header Through Hole 24 position 0.100" (2.54mm)
