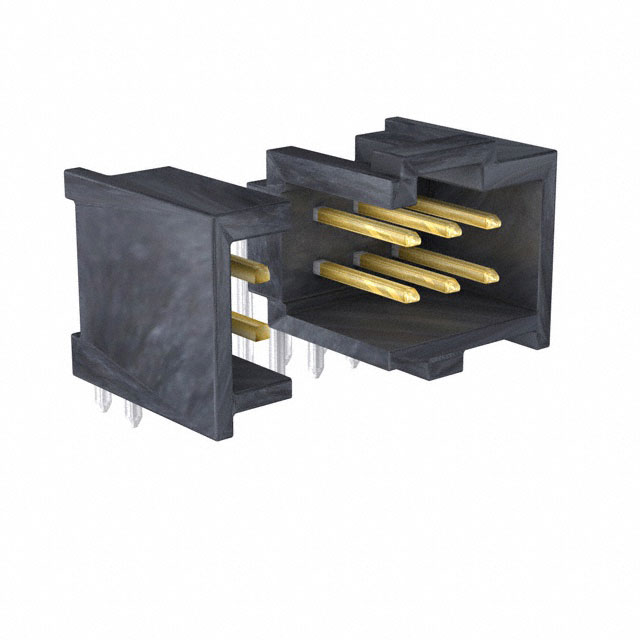

0901303214 - C-Grid III 90130 RA Gold Pins

0901303214

Active
Molex

CONN HEADER R/A 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0901303214 - C-Grid III 90130 RA Gold Pins

0901303214

Active
Molex

CONN HEADER R/A 14POS 2.54MM

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification0901303214
ApplicationsAutomotive, General Purpose
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating15 µin
Contact Finish Thickness - Mating0.38 µm
Contact Finish Thickness - Post3 µm
Contact Finish Thickness - Post118.1 µin
Contact Length - Mating0.266 in
Contact Length - Mating6.75 mm
Contact Length - Post0.114 in
Contact Length - Post2.9 mm
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypeLatch Holder
Insulation ColorBlack
Insulation Height0.384 in
Insulation Height9.75 mm
Insulation MaterialPolyester, Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions14
Number of Positions LoadedAll
Number of Rows2
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder

90130 Series

PartConnector TypeTerminationApplicationsContact Finish - PostContact TypeNumber of Positions LoadedMounting TypeFastening TypeNumber of RowsInsulation ColorRow Spacing - Mating [x]Row Spacing - Mating [x]ShroudingPitch - MatingPitch - MatingMaterial Flammability RatingStyleContact MaterialContact Finish Thickness - MatingContact Finish Thickness - MatingContact Length - PostContact Length - PostInsulation HeightInsulation HeightNumber of PositionsContact ShapeContact Length - MatingContact Length - MatingInsulation MaterialContact Finish - MatingContact Finish Thickness - PostContact Finish Thickness - PostContact Finish Thickness - Mating
Molex
0901301140
Header
Solder
Automotive
General Purpose
Tin
Male Pin
All
Through Hole
Latch Holder
2
Black
2.54 mm
0.1 in
Shrouded - 4 Wall
0.1 in
2.54 mm
UL94 V-0
Board to Cable/Wire
Brass
118.1 µin
3 µm
0.114 in
2.9 mm
0.429 in
10.9 mm
40
Square
0.266 in
6.75 mm
Polyester
Glass Filled
Molex
0901303130
Header
Solder
Automotive
General Purpose
Tin
Male Pin
All
Through Hole
Right Angle
Latch Holder
2
Black
2.54 mm
0.1 in
Shrouded - 4 Wall
0.1 in
2.54 mm
UL94 V-0
Board to Cable/Wire
Brass
118.1 µin
3 µm
0.114 in
2.9 mm
0.384 in
9.75 mm
30
Square
0.266 in
6.75 mm
Polyester
Glass Filled
Molex
0901301234
Header
Solder
Automotive
General Purpose
Tin
Male Pin
All
Through Hole
Latch Holder
2
Black
2.54 mm
0.1 in
Shrouded - 4 Wall
0.1 in
2.54 mm
UL94 V-0
Board to Cable/Wire
Brass
0.38 µm
0.114 in
2.9 mm
0.429 in
10.9 mm
34
Square
0.266 in
6.75 mm
Polyester
Glass Filled
Gold
3 µm
118.1 µin
15 µin
Molex
901303234
Molex
0901303140
Header
Solder
Automotive
General Purpose
Tin
Male Pin
All
Through Hole
Right Angle
Latch Holder
2
Black
2.54 mm
0.1 in
Shrouded - 4 Wall
0.1 in
2.54 mm
UL94 V-0
Board to Cable/Wire
Brass
118.1 µin
3 µm
0.114 in
2.9 mm
0.384 in
9.75 mm
40
Square
0.266 in
6.75 mm
Polyester
Glass Filled
Molex
0901301230
Header
Solder
Automotive
General Purpose
Tin
Male Pin
All
Through Hole
Latch Holder
2
Black
2.54 mm
0.1 in
Shrouded - 4 Wall
0.1 in
2.54 mm
UL94 V-0
Board to Cable/Wire
Brass
0.38 µm
0.114 in
2.9 mm
0.429 in
10.9 mm
30
Square
0.266 in
6.75 mm
Polyester
Glass Filled
Gold
3 µm
118.1 µin
15 µin
Molex
0901303214
Header
Solder
Automotive
General Purpose
Tin
Male Pin
All
Through Hole
Right Angle
Latch Holder
2
Black
2.54 mm
0.1 in
Shrouded - 4 Wall
0.1 in
2.54 mm
UL94 V-0
Board to Cable/Wire
Brass
0.38 µm
0.114 in
2.9 mm
0.384 in
9.75 mm
14
Square
0.266 in
6.75 mm
Polyester
Glass Filled
Gold
3 µm
118.1 µin
15 µin
Molex
0901301218
Header
Solder
Automotive
General Purpose
Tin
Male Pin
All
Through Hole
Latch Holder
2
Black
2.54 mm
0.1 in
Shrouded - 4 Wall
0.1 in
2.54 mm
UL94 V-0
Board to Cable/Wire
Brass
0.38 µm
0.114 in
2.9 mm
0.429 in
10.9 mm
18
Square
0.266 in
6.75 mm
Polyester
Glass Filled
Gold
3 µm
118.1 µin
15 µin
Molex
0901301224
Header
Solder
Automotive
General Purpose
Tin
Male Pin
All
Through Hole
Latch Holder
2
Black
2.54 mm
0.1 in
Shrouded - 4 Wall
0.1 in
2.54 mm
UL94 V-0
Board to Cable/Wire
Brass
0.38 µm
0.114 in
2.9 mm
0.429 in
10.9 mm
24
Square
0.266 in
6.75 mm
Polyester
Glass Filled
Gold
3 µm
118.1 µin
15 µin
Molex
0901303106
Header
Solder
Automotive
General Purpose
Tin
Male Pin
All
Through Hole
Right Angle
Latch Holder
2
Black
2.54 mm
0.1 in
Shrouded - 4 Wall
0.1 in
2.54 mm
UL94 V-0
Board to Cable/Wire
Brass
118.1 µin
3 µm
0.114 in
2.9 mm
0.384 in
9.75 mm
6
Square
0.266 in
6.75 mm
Polyester
Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.46
10$ 3.93
128$ 3.12
1024$ 2.59

Description

General part information

90130 Series

Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
