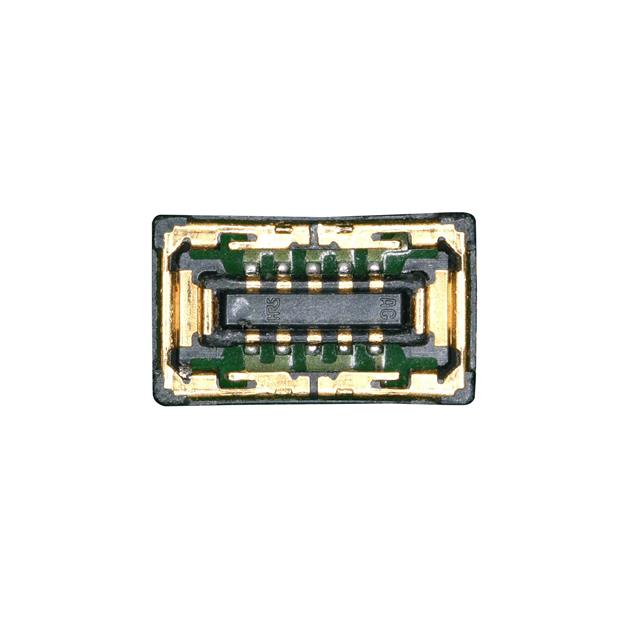

BM56G-10DS-0.35V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 0.35MM 10POS SMT GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 0.35MM 10POS SMT GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BM56G-10DS-0.35V(51)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	1.18 Áin
Contact Finish Thickness	0.03 Ám
Features	Solder Retention
Height Above Board	0.46 mm
Height Above Board	0.018 in
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Connector Type	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Features
Hirose Electric USA, Inc. BM56G-10DP-0.35V(53)	Gold	Surface Mount	0.35 mm	0.014 in	0.46 mm	0.018 in	Header Outer Shroud Contacts	2	10
Hirose Electric USA, Inc. BM56G-10DS-0.35V(51)	Gold	Surface Mount	0.35 mm	0.014 in	0.46 mm	0.018 in	Center Strip Contacts Receptacle	2	10	1.18 Áin	0.03 Ám	0.6 mm	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	20000	$ 0.81

General part information

10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Technical documentation and resources
