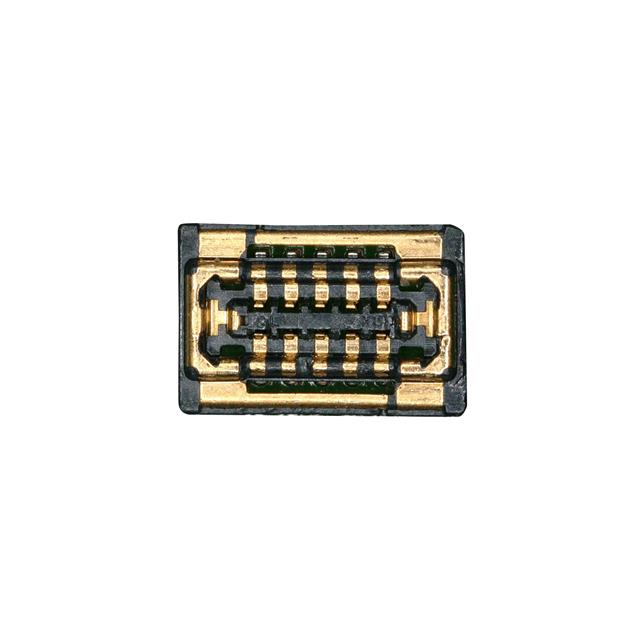

BM56G-10DP-0.35V(53)
ActiveHirose Electric USA, Inc.
CONN HDR 0.35MM 10POS SMT GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BM56G-10DP-0.35V(53)
ActiveHirose Electric USA, Inc.
CONN HDR 0.35MM 10POS SMT GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BM56G-10DP-0.35V(53) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.46 mm |
| Height Above Board | 0.018 in |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.37 | |
| 10 | $ 2.06 | |||
| 25 | $ 1.98 | |||
| 50 | $ 1.93 | |||
| 100 | $ 1.85 | |||
| 250 | $ 1.67 | |||
| 500 | $ 1.54 | |||
| Digi-Reel® | 1 | $ 2.37 | ||
| 10 | $ 2.06 | |||
| 25 | $ 1.98 | |||
| 50 | $ 1.93 | |||
| 100 | $ 1.85 | |||
| 250 | $ 1.67 | |||
| 500 | $ 1.54 | |||
| Tape & Reel (TR) | 1000 | $ 1.32 | ||
| 2000 | $ 1.27 | |||
| 3000 | $ 1.23 | |||
| 5000 | $ 1.17 | |||
Description
General part information
BM56G Series
10 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
