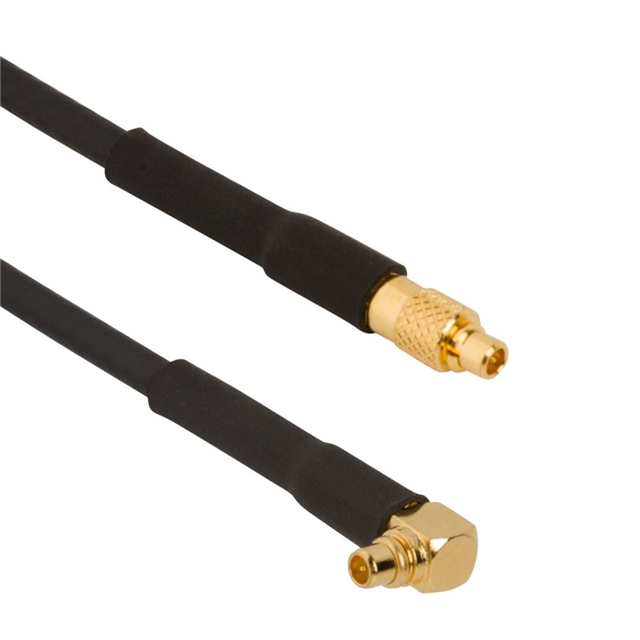

095-900-549M075

Active

Amphenol RF

CABLE ASSEMBLY COAXIAL 0.75M MMCX TO MMCX PL-PL BAG

Deep-Dive with AI

Search across all available documentation for this part.

095-900-549M075

Active

Amphenol RF

CABLE ASSEMBLY COAXIAL 0.75M MMCX TO MMCX PL-PL BAG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	095-900-549M075

1st Connector	MMCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Frequency - Max [Max]	1 GHz
Length	29.53 "
Length	750 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	MMCX to MMCX

095-900 Series

...

Part	2nd Contact Gender	Length	Length	Length	Cable Impedance	Operating Temperature [Max]	Operating Temperature [Min]	1st Contact Gender	Style	1st Connector Mounting Type	2nd Connector	Cable Type	Frequency - Max [Max]	2nd Connector Mounting Type	1st Connector	Overall Impedance	Color	Length [x]	Length [x]
Amphenol RF 095-900-547M200	Male	6.6 ft	78.7 in	2 m	50 Ohms	85 °C	-40 °C	Male	MCX to MCX	Free Hanging (In-Line)	MCX Plug Right Angle	RG-174	1 GHz	Free Hanging (In-Line)	MCX Plug Right Angle	50 Ohms	Black
Amphenol RF 095-900-548-018	Male				50 Ohms	85 °C	-40 °C	Male	MMCX to MMCX	Free Hanging (In-Line)	MMCX Plug	RG-174	1 GHz	Free Hanging (In-Line)	MMCX Plug	50 Ohms	Black	457.2 mm	457.2 mm
Amphenol RF 095-900-549-018	Male				50 Ohms	85 °C	-40 °C	Male	MMCX to MMCX	Free Hanging (In-Line)	MMCX Plug Right Angle	RG-174	1 GHz	Free Hanging (In-Line)	MMCX Plug	50 Ohms	Black	457.2 mm	457.2 mm
Amphenol RF 095-900-547-036	Male		36 in	91.44 cm	50 Ohms	85 °C	-40 °C	Male	MCX to MCX	Free Hanging (In-Line)	MCX Plug Right Angle	RG-174	1 GHz	Free Hanging (In-Line)	MCX Plug Right Angle	50 Ohms	Black
Amphenol RF 095-900-549M075	Male		29.53 "	750 mm	50 Ohms	85 °C	-40 °C	Male	MMCX to MMCX	Free Hanging (In-Line)	MMCX Plug Right Angle	RG-174	1 GHz	Free Hanging (In-Line)	MMCX Plug	50 Ohms	Black
Amphenol RF 095-900-551-036	Male		36 in	91.44 cm		85 °C	-40 °C	Male	MCX to MCX	Free Hanging (In-Line)	MCX Plug Right Angle	Belden 4855R	12 GHz	Free Hanging (In-Line)	MCX Plug Right Angle	75 Ohms	Black
Amphenol RF 095-900-545-012	Male		12 "	304.8 mm	50 Ohms	85 °C	-40 °C	Male	MCX to MCX	Free Hanging (In-Line)	MCX Plug	RG-174	1 GHz	Free Hanging (In-Line)	MCX Plug	50 Ohms	Black
Amphenol RF 095-900-546-036	Male		36 in	91.44 cm	50 Ohms	85 °C	-40 °C	Male	MCX to MCX	Free Hanging (In-Line)	MCX Plug Right Angle	RG-174	1 GHz	Free Hanging (In-Line)	MCX Plug	50 Ohms	Black
Amphenol RF 095-900-550M050	Male		19.69 "	50 cm	50 Ohms	85 °C	-40 °C	Male	MMCX to MMCX	Free Hanging (In-Line)	MCX Plug Right Angle	RG-174	1 GHz	Free Hanging (In-Line)	MCX Plug Right Angle	50 Ohms	Black
Amphenol RF 095-900-549-012	Male		12 "	304.8 mm	50 Ohms	85 °C	-40 °C	Male	MMCX to MMCX	Free Hanging (In-Line)	MMCX Plug Right Angle	RG-174	1 GHz	Free Hanging (In-Line)	MMCX Plug	50 Ohms	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 16.20

Description

General part information

095-900 Series

Cable Assembly Coaxial MMCX to MMCX RG-174 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
