095-900-546-036
ActiveAmphenol RF

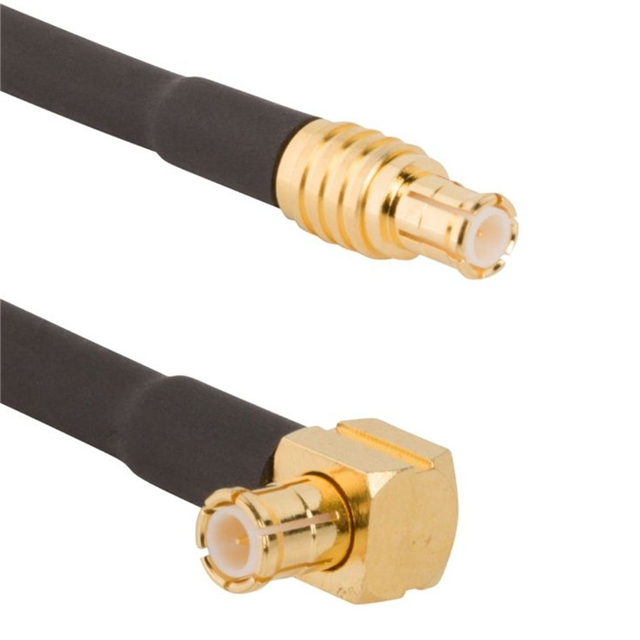

CBL ASSY MCX PLUG TO PLUG 36"
Deep-Dive with AI
Search across all available documentation for this part.
095-900-546-036
ActiveAmphenol RF
CBL ASSY MCX PLUG TO PLUG 36"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-900-546-036 |
|---|---|
| 1st Connector | MCX Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Frequency - Max [Max] | 1 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | MCX to MCX |
095-900 Series
...
| Part | 2nd Contact Gender | Length | Length | Length | Cable Impedance | Operating Temperature [Max] | Operating Temperature [Min] | 1st Contact Gender | Style | 1st Connector Mounting Type | 2nd Connector | Cable Type | Frequency - Max [Max] | 2nd Connector Mounting Type | 1st Connector | Overall Impedance | Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Male | 6.6 ft | 78.7 in | 2 m | 50 Ohms | 85 °C | -40 °C | Male | MCX to MCX | Free Hanging (In-Line) | MCX Plug Right Angle | RG-174 | 1 GHz | Free Hanging (In-Line) | MCX Plug Right Angle | 50 Ohms | Black | ||
Amphenol RF | Male | 50 Ohms | 85 °C | -40 °C | Male | MMCX to MMCX | Free Hanging (In-Line) | MMCX Plug | RG-174 | 1 GHz | Free Hanging (In-Line) | MMCX Plug | 50 Ohms | Black | 457.2 mm | 457.2 mm | |||
Amphenol RF | Male | 50 Ohms | 85 °C | -40 °C | Male | MMCX to MMCX | Free Hanging (In-Line) | MMCX Plug Right Angle | RG-174 | 1 GHz | Free Hanging (In-Line) | MMCX Plug | 50 Ohms | Black | 457.2 mm | 457.2 mm | |||
Amphenol RF | Male | 36 in | 91.44 cm | 50 Ohms | 85 °C | -40 °C | Male | MCX to MCX | Free Hanging (In-Line) | MCX Plug Right Angle | RG-174 | 1 GHz | Free Hanging (In-Line) | MCX Plug Right Angle | 50 Ohms | Black | |||
Amphenol RF | Male | 29.53 " | 750 mm | 50 Ohms | 85 °C | -40 °C | Male | MMCX to MMCX | Free Hanging (In-Line) | MMCX Plug Right Angle | RG-174 | 1 GHz | Free Hanging (In-Line) | MMCX Plug | 50 Ohms | Black | |||
Amphenol RF | Male | 36 in | 91.44 cm | 85 °C | -40 °C | Male | MCX to MCX | Free Hanging (In-Line) | MCX Plug Right Angle | Belden 4855R | 12 GHz | Free Hanging (In-Line) | MCX Plug Right Angle | 75 Ohms | Black | ||||
Amphenol RF | Male | 12 " | 304.8 mm | 50 Ohms | 85 °C | -40 °C | Male | MCX to MCX | Free Hanging (In-Line) | MCX Plug | RG-174 | 1 GHz | Free Hanging (In-Line) | MCX Plug | 50 Ohms | Black | |||
Amphenol RF | Male | 36 in | 91.44 cm | 50 Ohms | 85 °C | -40 °C | Male | MCX to MCX | Free Hanging (In-Line) | MCX Plug Right Angle | RG-174 | 1 GHz | Free Hanging (In-Line) | MCX Plug | 50 Ohms | Black | |||
Amphenol RF | Male | 19.69 " | 50 cm | 50 Ohms | 85 °C | -40 °C | Male | MMCX to MMCX | Free Hanging (In-Line) | MCX Plug Right Angle | RG-174 | 1 GHz | Free Hanging (In-Line) | MCX Plug Right Angle | 50 Ohms | Black | |||
Amphenol RF | Male | 12 " | 304.8 mm | 50 Ohms | 85 °C | -40 °C | Male | MMCX to MMCX | Free Hanging (In-Line) | MMCX Plug Right Angle | RG-174 | 1 GHz | Free Hanging (In-Line) | MMCX Plug | 50 Ohms | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 25 | $ 19.82 | |
Description
General part information
095-900 Series
Cable Assembly Coaxial MCX to MCX RG-174 36.00" (914.40mm)
Documents
Technical documentation and resources
No documents available
