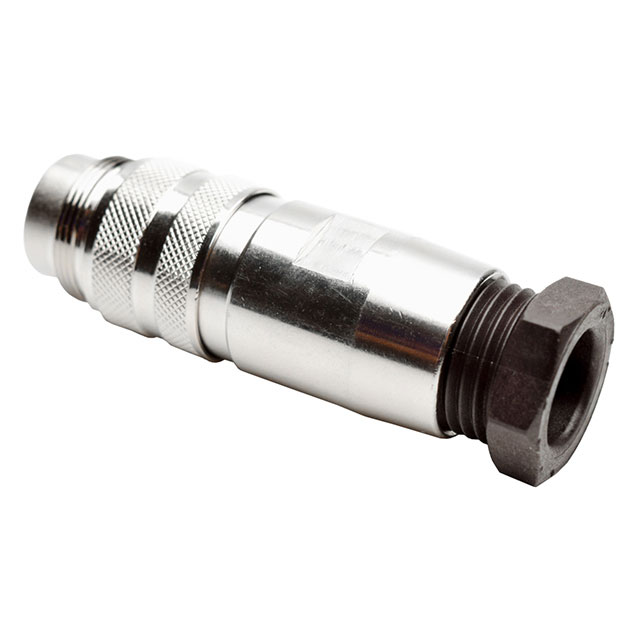

C09131H0071012U

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 7P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 A,B,D Series Catalog Datasheet

C09131H0071012U

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 7P SILV SLDR CUP

Deep-Dive with AI

DocumentsC091 A,B,D Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C09131H0071012U

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Features	Strain Relief
Ingress Protection	IP69K, IP65, IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-7
Shielding	Shielded
Voltage Rating	60 VDC

C09131H Series

Part	Features	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Primary Material	Ingress Protection	Contact Finish - Mating	Shell Finish	Shell Material	Shell Size - Insert	Voltage Rating	Shielding	Current Rating (Amps)	Mounting Type	Color	Number of Positions
Amphenol Tuchel Industrial C09131H0031002U	Strain Relief	Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP65 IP67 IP69K	Silver	Nickel	Die Cast	M16-3	60 VDC	Shielded	10 A	Free Hanging (In-Line)	Silver
Amphenol Tuchel Industrial C09131H0081014U		Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP68 IP69K	Silver	Nickel	Zinc Die Cast	M16-8				Free Hanging (In-Line)	Silver	8
Amphenol Tuchel Industrial C09131H0051002U	Strain Relief	Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP65 IP67 IP69K	Silver	Nickel	Die Cast	M16-5	60 VDC	Shielded	7 A	Free Hanging (In-Line)	Silver
Amphenol Tuchel Industrial C09131H0071012U	Strain Relief	Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP65 IP67 IP69K	Silver	Nickel	Die Cast	M16-7	60 VDC	Shielded	7 A	Free Hanging (In-Line)	Silver	7
Amphenol Tuchel Industrial C09131H0142002U	Strain Relief	Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP65 IP67 IP69K	Gold	Nickel	Die Cast	M16-14	250 VDC	Shielded	3 A	Free Hanging (In-Line)	Silver	14
Amphenol Tuchel Industrial C09131H0041002U	Strain Relief	Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP65 IP67 IP69K	Silver	Nickel	Die Cast	M16-4	60 VDC	Shielded	10 A	Free Hanging (In-Line)	Silver	4
Amphenol Tuchel Industrial C09131H0121024U		Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP68 IP69K	Silver	Nickel	Zinc Die Cast	M16-12				Free Hanging (In-Line)	Silver	12
Amphenol Tuchel Industrial C09131H0061014U		Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP68 IP69K	Silver	Nickel	Zinc Die Cast	M16-6				Free Hanging (In-Line)	Silver	6
Amphenol Tuchel Industrial C09131H0041014U		Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP68 IP69K	Silver	Nickel	Zinc Die Cast	M16-4				Free Hanging (In-Line)	Silver	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 18.31

Description

General part information

C09131H Series

7 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

C091 A,B,D Series Catalog

Datasheet
