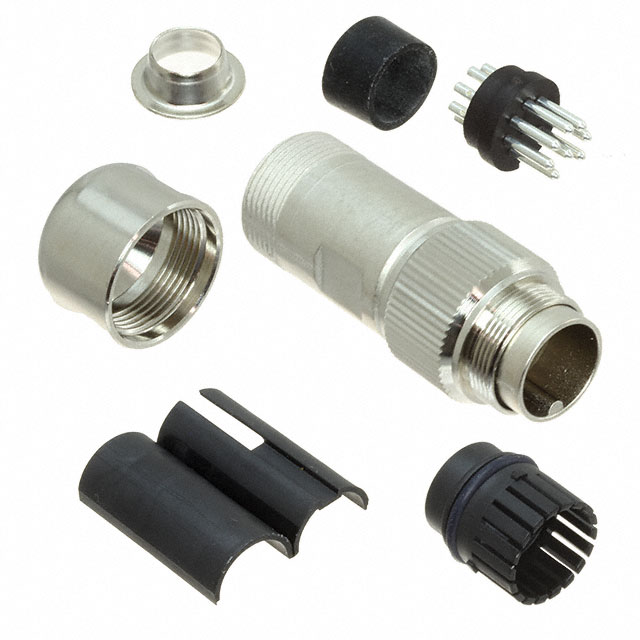

C09131H0081014U

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 8P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C09131H0081014U

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 8P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C09131H0081014U

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Ingress Protection	IP68, IP69K
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-8

C09131H Series

Part	Features	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Primary Material	Ingress Protection	Contact Finish - Mating	Shell Finish	Shell Material	Shell Size - Insert	Voltage Rating	Shielding	Current Rating (Amps)	Mounting Type	Color	Number of Positions
Amphenol Tuchel Industrial C09131H0031002U	Strain Relief	Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP65 IP67 IP69K	Silver	Nickel	Die Cast	M16-3	60 VDC	Shielded	10 A	Free Hanging (In-Line)	Silver
Amphenol Tuchel Industrial C09131H0081014U		Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP68 IP69K	Silver	Nickel	Zinc Die Cast	M16-8				Free Hanging (In-Line)	Silver	8
Amphenol Tuchel Industrial C09131H0051002U	Strain Relief	Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP65 IP67 IP69K	Silver	Nickel	Die Cast	M16-5	60 VDC	Shielded	7 A	Free Hanging (In-Line)	Silver
Amphenol Tuchel Industrial C09131H0071012U	Strain Relief	Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP65 IP67 IP69K	Silver	Nickel	Die Cast	M16-7	60 VDC	Shielded	7 A	Free Hanging (In-Line)	Silver	7
Amphenol Tuchel Industrial C09131H0142002U	Strain Relief	Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP65 IP67 IP69K	Gold	Nickel	Die Cast	M16-14	250 VDC	Shielded	3 A	Free Hanging (In-Line)	Silver	14
Amphenol Tuchel Industrial C09131H0041002U	Strain Relief	Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP65 IP67 IP69K	Silver	Nickel	Die Cast	M16-4	60 VDC	Shielded	10 A	Free Hanging (In-Line)	Silver	4
Amphenol Tuchel Industrial C09131H0121024U		Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP68 IP69K	Silver	Nickel	Zinc Die Cast	M16-12				Free Hanging (In-Line)	Silver	12
Amphenol Tuchel Industrial C09131H0061014U		Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP68 IP69K	Silver	Nickel	Zinc Die Cast	M16-6				Free Hanging (In-Line)	Silver	6
Amphenol Tuchel Industrial C09131H0041014U		Male Pins Plug	100 °C	-40 °C	Keyed	Metal	IP68 IP69K	Silver	Nickel	Zinc Die Cast	M16-4				Free Hanging (In-Line)	Silver	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.68
		10	$ 19.02
		25	$ 17.23
		50	$ 16.01
		100	$ 14.91
		250	$ 13.61
		500	$ 12.74

Description

General part information

C09131H Series

8 Position Circular Connector Plug, Male Pins Solder Cup
