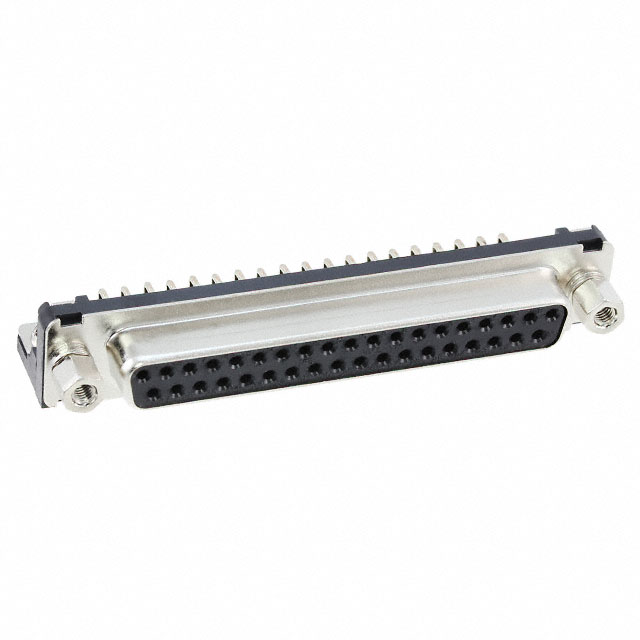

RDCD-37S-LNA(55)
ActiveHirose Electric USA, Inc.
CONN D-SUB RCPT 37POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
RDCD-37S-LNA(55)
ActiveHirose Electric USA, Inc.
CONN D-SUB RCPT 37POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RDCD-37S-LNA(55) |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
| Voltage Rating | 350 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.77 | |
| 10 | $ 11.36 | |||
| 25 | $ 10.27 | |||
| 40 | $ 9.76 | |||
| 80 | $ 9.07 | |||
| 230 | $ 8.14 | |||
| 440 | $ 7.64 | |||
| 945 | $ 7.10 | |||
Description
General part information
RDCD Series
37 Position D-Sub Receptacle, Female Sockets Connector
