RDCD-37SE1/M2.6(55)
ActiveHirose Electric USA, Inc.

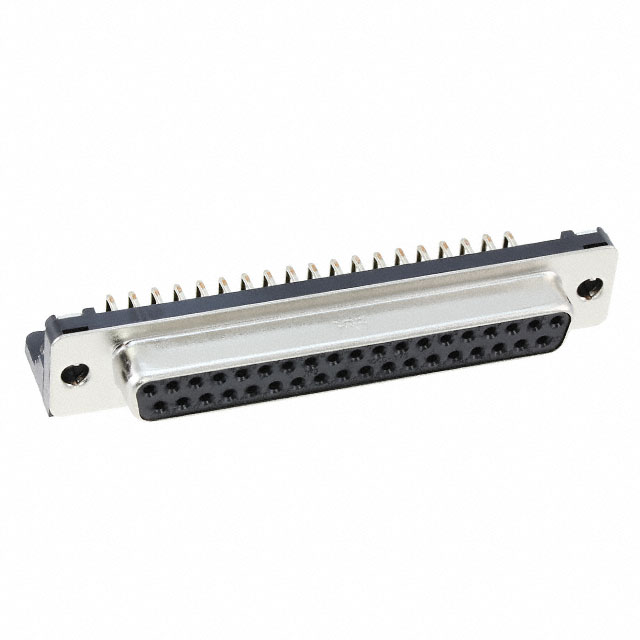

CONN D-SUB RCPT 37POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDCD-37SE1/M2.6(55)
ActiveHirose Electric USA, Inc.
CONN D-SUB RCPT 37POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDCD-37SE1/M2.6(55) |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
| Voltage Rating | 350 V |
RDCD Series
| Part | Voltage Rating | Dielectric Material | Color | Current Rating (Amps) | Contact Material | Shell Material, Finish | Contact Finish | Flange Feature | Flange Feature | Contact Type | Mounting Type | Connector Type | Connector Style | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 350 V | Polybutylene Terephthalate (PBT) | Black | 3 A | Phosphor Bronze | Nickel Plated Steel | Gold | Housing/Shell | 2.6 M | Signal | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | D-Sub | 2 | 85 °C | -55 °C | 4 (DC C) | 8 çin | 0.203 çm | UL94 V-0 | Solder | 37 |
Hirose Electric USA, Inc. | 350 V | Polybutylene Terephthalate (PBT) | Black | 3 A | Phosphor Bronze | Nickel Plated Steel | Gold | Signal | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | D-Sub | 2 | 85 °C | -55 °C | 4 (DC C) | 8 çin | 0.203 çm | UL94 V-0 | Solder | 37 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.12 | |
| 10 | $ 15.50 | |||
| 25 | $ 14.02 | |||
| 40 | $ 13.34 | |||
| 80 | $ 12.41 | |||
| 230 | $ 11.15 | |||
| 440 | $ 10.47 | |||
| 945 | $ 9.76 | |||
Description
General part information
RDCD Series
37 Position D-Sub Receptacle, Female Sockets Connector
