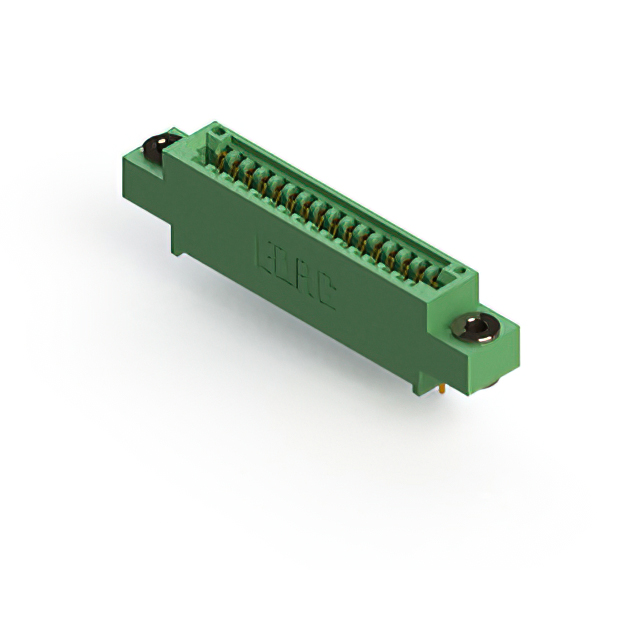

845-016-541-603 - 845-016-541-603

845-016-541-603

Active
EDAC Inc.

CONN EDGE SINGLE FML 16POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
845-016-541-603 - 845-016-541-603

845-016-541-603

Active
EDAC Inc.

CONN EDGE SINGLE FML 16POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification845-016-541-603
Card Thickness [Max]1.78 mm
Card Thickness [Max]0.07 in
Card Thickness [Min]1.37 mm
Card Thickness [Min]0.054 "
Card TypeNon Specified - Single Edge
ColorGreen
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialCopper Alloy
Contact TypeCantilever
Flange FeatureTop Mount Opening, Floating Bobbin
Flange Feature [diameter]2.95 mm
Flange Feature [diameter]0.116 in
GenderFemale
Material - InsulationDiallyl Phthalate (DAP)
Mounting TypeThrough Hole
Number of Positions16
Number of Positions/Bay/Row [custom]16
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Pitch [x]2.54 mm
Pitch [x]0.1 in
Read OutSingle
TerminationWire Wrap
Termination Rows1

845-016 Series

...
PartNumber of PositionsContact FinishMounting TypeRead OutCard Thickness [Min]Card Thickness [Min]Card Thickness [Max]Card Thickness [Max]ColorOperating Temperature [Max]Operating Temperature [Min]Contact MaterialContact Finish ThicknessContact Finish ThicknessContact TypeNumber of RowsGenderTermination RowsMaterial - InsulationTerminationPitch [x]Pitch [x]Number of Positions/Bay/Row [custom]Number of Positions/Bay/Row [custom]Number of Positions/Bay/Row [custom]Card TypeFlange Feature [diameter]Flange FeatureFlange Feature [diameter]Number of Positions/Bay/Row [custom]
EDAC Inc.
845-016-523-201
16
Gold
Through Hole
Dual
1.37 mm
0.054 "
1.78 mm
0.07 in
Green
125 °C
-40 °C
Copper Alloy
10 Áin
0.25 Ám
Cantilever
2
Female
2
Diallyl Phthalate (DAP)
Solder
2.54 mm
0.1 in
8
8
8
Non Specified - Dual Edge
EDAC Inc.
845-016-542-203
16
Gold
Through Hole
Dual
1.37 mm
0.054 "
1.78 mm
0.07 in
Green
125 °C
-40 °C
Copper Alloy
10 Áin
0.25 Ám
Cantilever
2
Female
2
Diallyl Phthalate (DAP)
Wire Wrap
2.54 mm
0.1 in
8
8
8
Non Specified - Dual Edge
0.116 in
Floating Bobbin
Flush Mount
2.95 mm
EDAC Inc.
845-016-544-204
16
Gold
Through Hole
Dual
1.37 mm
0.054 "
1.78 mm
0.07 in
Green
125 °C
-40 °C
Copper Alloy
10 Áin
0.25 Ám
Cantilever
2
Female
2
Diallyl Phthalate (DAP)
Wire Wrap
2.54 mm
0.1 in
8
8
8
Non Specified - Dual Edge
0.156 in
Flush Mount
Top Opening
Unthreaded
3.96 mm
EDAC Inc.
845-016-541-603
16
Gold
Through Hole
Single
1.37 mm
0.054 "
1.78 mm
0.07 in
Green
125 °C
-40 °C
Copper Alloy
10 Áin
0.25 Ám
Cantilever
1
Female
1
Diallyl Phthalate (DAP)
Wire Wrap
2.54 mm
0.1 in
Non Specified - Single Edge
0.116 in
Floating Bobbin
Top Mount Opening
2.95 mm
16
EDAC Inc.
845-016-521-803
16
Gold
Through Hole
Dual
1.37 mm
0.054 "
1.78 mm
0.07 in
Green
125 °C
-40 °C
Copper Alloy
10 Áin
0.25 Ám
Cantilever
2
Female
2
Diallyl Phthalate (DAP)
Solder
2.54 mm
0.1 in
8
8
8
Non Specified - Dual Edge
0.116 in
Floating Bobbin
Top Mount Opening
2.95 mm
EDAC Inc.
845-016-541-803
16
Gold
Through Hole
Dual
1.37 mm
0.054 "
1.78 mm
0.07 in
Green
125 °C
-40 °C
Copper Alloy
10 Áin
0.25 Ám
Cantilever
2
Female
2
Diallyl Phthalate (DAP)
Wire Wrap
2.54 mm
0.1 in
8
8
8
Non Specified - Dual Edge
0.116 in
Floating Bobbin
Top Mount Opening
2.95 mm
EDAC Inc.
845-016-559-202
16
Gold
Through Hole
Right Angle
Dual
1.37 mm
0.054 "
1.78 mm
0.07 in
Green
125 °C
-40 °C
Copper Alloy
10 Áin
0.25 Ám
Cantilever
2
Female
2
Diallyl Phthalate (DAP)
Solder
2.54 mm
0.1 in
8
8
8
Non Specified - Dual Edge
0.128 "
Flush Mount
Top Opening
Unthreaded
3.25 mm
EDAC Inc.
845-016-544-203
16
Gold
Through Hole
Dual
1.37 mm
0.054 "
1.78 mm
0.07 in
Green
125 °C
-40 °C
Copper Alloy
10 Áin
0.25 Ám
Cantilever
2
Female
2
Diallyl Phthalate (DAP)
Wire Wrap
2.54 mm
0.1 in
8
8
8
Non Specified - Dual Edge
0.116 in
Floating Bobbin
Flush Mount
2.95 mm
EDAC Inc.
845-016-541-507
16
Gold
Through Hole
Dual
1.37 mm
0.054 "
1.78 mm
0.07 in
Green
125 °C
-40 °C
Copper Alloy
10 Áin
0.25 Ám
Cantilever
2
Female
2
Diallyl Phthalate (DAP)
Wire Wrap
2.54 mm
0.1 in
8
8
8
Non Specified - Dual Edge
M3
Threaded Insert
Top Mount Opening
EDAC Inc.
845-016-558-608
16
Gold
Through Hole
Right Angle
Single
1.37 mm
0.054 "
1.78 mm
0.07 in
Green
125 °C
-40 °C
Copper Alloy
10 Áin
0.25 Ám
Cantilever
1
Female
1
Diallyl Phthalate (DAP)
Solder
2.54 mm
0.1 in
Non Specified - Single Edge
4-40
Threaded Insert
Top Mount Opening
16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 25$ 69.82
NewarkEach 1$ 80.59
100$ 64.91
250$ 57.14
500$ 48.27
1000$ 37.50

Description

General part information

845-016 Series

16 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
