845-016-559-202
ActiveEDAC Inc.

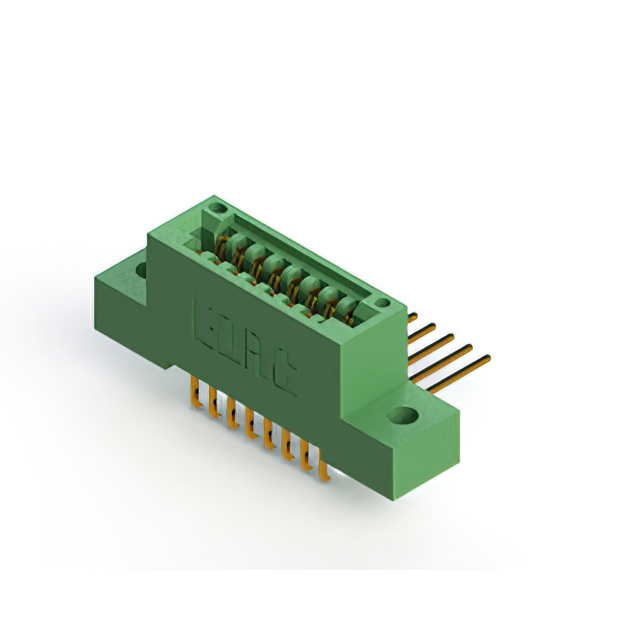

CONN EDGE DUAL FMALE 16POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-016-559-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-016-559-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-016 Series
...
| Part | Number of Positions | Contact Finish | Mounting Type | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Rows | Gender | Termination Rows | Material - Insulation | Termination | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 16 | Gold | Through Hole | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | 2 | Diallyl Phthalate (DAP) | Solder | 2.54 mm | 0.1 in | 8 | 8 | 8 | Non Specified - Dual Edge | ||||
EDAC Inc. | 16 | Gold | Through Hole | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | 2 | Diallyl Phthalate (DAP) | Wire Wrap | 2.54 mm | 0.1 in | 8 | 8 | 8 | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |
EDAC Inc. | 16 | Gold | Through Hole | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | 2 | Diallyl Phthalate (DAP) | Wire Wrap | 2.54 mm | 0.1 in | 8 | 8 | 8 | Non Specified - Dual Edge | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | |
EDAC Inc. | 16 | Gold | Through Hole | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | 1 | Diallyl Phthalate (DAP) | Wire Wrap | 2.54 mm | 0.1 in | Non Specified - Single Edge | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 16 | |||
EDAC Inc. | 16 | Gold | Through Hole | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | 2 | Diallyl Phthalate (DAP) | Solder | 2.54 mm | 0.1 in | 8 | 8 | 8 | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | |
EDAC Inc. | 16 | Gold | Through Hole | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | 2 | Diallyl Phthalate (DAP) | Wire Wrap | 2.54 mm | 0.1 in | 8 | 8 | 8 | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | |
EDAC Inc. | 16 | Gold | Through Hole Right Angle | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | 2 | Diallyl Phthalate (DAP) | Solder | 2.54 mm | 0.1 in | 8 | 8 | 8 | Non Specified - Dual Edge | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | |
EDAC Inc. | 16 | Gold | Through Hole | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | 2 | Diallyl Phthalate (DAP) | Wire Wrap | 2.54 mm | 0.1 in | 8 | 8 | 8 | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |
EDAC Inc. | 16 | Gold | Through Hole | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | 2 | Diallyl Phthalate (DAP) | Wire Wrap | 2.54 mm | 0.1 in | 8 | 8 | 8 | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | |||
EDAC Inc. | 16 | Gold | Through Hole Right Angle | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 125 °C | -40 °C | Copper Alloy | 10 Áin | 0.25 Ám | Cantilever | 1 | Female | 1 | Diallyl Phthalate (DAP) | Solder | 2.54 mm | 0.1 in | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 59.19 | |
Description
General part information
845-016 Series
16 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
