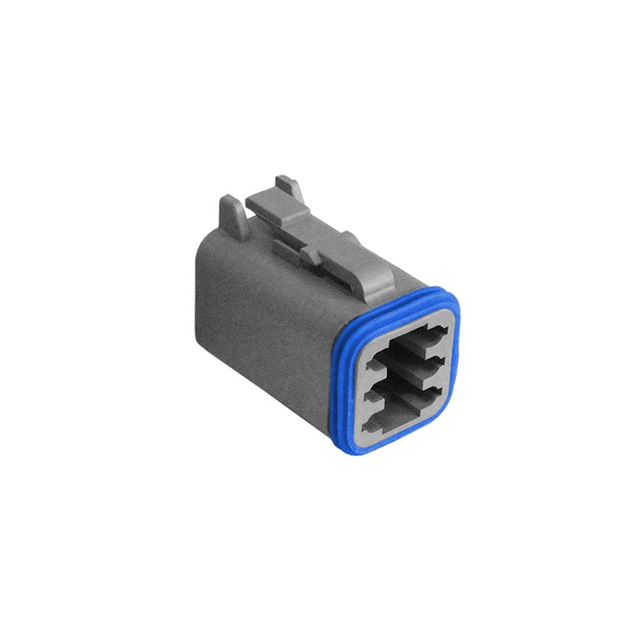

PX0105S06GY
ActiveBULGIN LIMITED
AUTOMOTIVE CONNECTOR, PX0 SERIES, STRAIGHT PLUG, 6 CONTACTS, CRIMP SOCKET - CONTACTS NOT SUPPLIED
Deep-Dive with AI
Search across all available documentation for this part.
PX0105S06GY
ActiveBULGIN LIMITED
AUTOMOTIVE CONNECTOR, PX0 SERIES, STRAIGHT PLUG, 6 CONTACTS, CRIMP SOCKET - CONTACTS NOT SUPPLIED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0105S06GY |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket, Power |
| Fastening Type | Latch Lock |
| Features | Cap (Cover), IP68 |
| Insulation Material | Glass Filled, Polyamide (PA), Polybutylene Terephthalate (PBT), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.84 | |
| 10 | $ 2.58 | |||
| 25 | $ 2.44 | |||
| 50 | $ 2.39 | |||
| 100 | $ 2.27 | |||
| 250 | $ 2.00 | |||
Description
General part information
PX0105 Series
6 Rectangular Connectors - Housings Plug Gray
