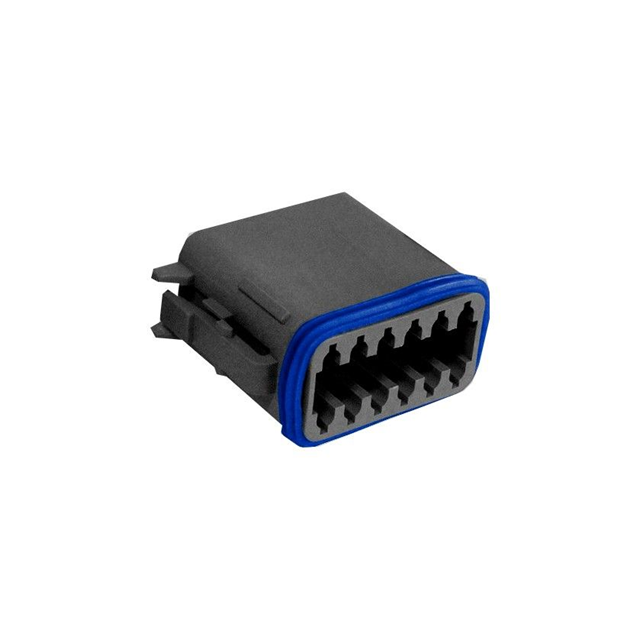

PX0105S12ABK

Active

BULGIN LIMITED

CONN PLUG HSG 12POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PX0105S12ABK

Active

BULGIN LIMITED

CONN PLUG HSG 12POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0105S12ABK

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket, Power
Fastening Type	Latch Lock
Features	Cap (Cover), IP68
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C

PX0105 Series

Part	Contact Termination	Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Features	Number of Rows	Fastening Type	Insulation Material	Note	Mounting Type
BULGIN LIMITED PX0105S12AGY	Crimp	Gray	Female Socket Power	-40 °C	120 °C	Plug	12	Cap (Cover) IP68	2	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Contacts Not Included	Free Hanging (In-Line)
BULGIN LIMITED PX0105S08AGY	Crimp	Gray	Female Socket Power	-40 °C	120 °C	Plug	8	Cap (Cover) IP68	2	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Contacts Not Included	Free Hanging (In-Line)
BULGIN LIMITED PX0105S04BK	Crimp	Black	Female Socket Power	-40 °C	120 °C	Plug	4	Cap (Cover) IP68	2	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Contacts Not Included	Free Hanging (In-Line)
BULGIN LIMITED PX0105S02BK	Crimp	Black	Female Socket Power	-40 °C	120 °C	Plug	2	Cap (Cover) IP68	1	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Contacts Not Included	Free Hanging (In-Line)
BULGIN LIMITED PX0105S06GY	Crimp	Gray	Female Socket Power	-40 °C	120 °C	Plug	6	Cap (Cover) IP68	3	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Contacts Not Included	Free Hanging (In-Line)
BULGIN LIMITED PX0105S02GY	Crimp	Gray	Female Socket Power	-40 °C	120 °C	Plug	2	Cap (Cover) IP68	1	Latch Lock	Glass Filled Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	Contacts Not Included	Free Hanging (In-Line)
BULGIN LIMITED PX0105S12ABK	Crimp	Black	Female Socket Power	-40 °C	120 °C	Plug	12	Cap (Cover) IP68	2	Latch Lock	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.04
		10	$ 4.56
		25	$ 4.31
		50	$ 4.20
		100	$ 3.99
		250	$ 3.70

Description

General part information

PX0105 Series

12 Rectangular Connectors - Housings Plug Black
