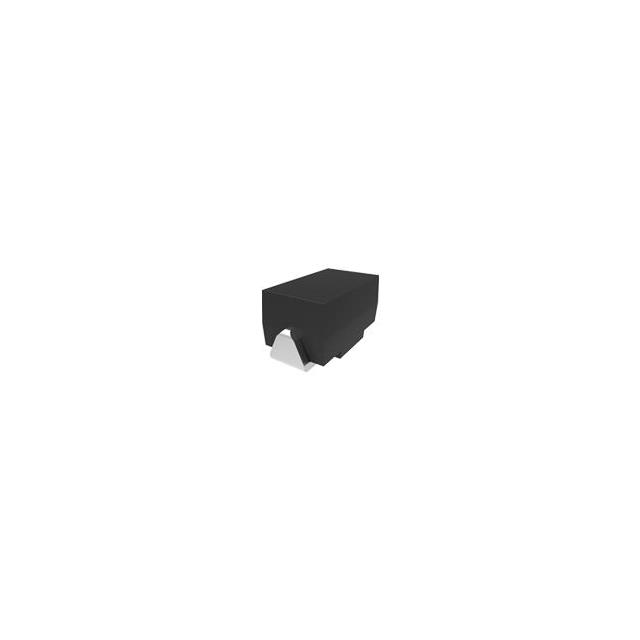

US1JE-TP

Obsolete

Micro Commercial Components

DIODE GEN PURP 600V 1A DO214AC

Search across all available documentation for this part.

Obsolete

Micro Commercial Components

DIODE GEN PURP 600V 1A DO214AC

Technical Specifications

Parameters and characteristics for this part

Specification	US1JE-TP

Capacitance @ Vr, F	17 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-50 °C
Package / Case	DO-214AC, SMA
Reverse Recovery Time (trr)	75 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AC (SMAE)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Mounting Type	Speed	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Reverse Recovery Time (trr)	Supplier Device Package
Micro Commercial Components US1J-TP	1.7 V	175 ░C	-65 C	Standard	Surface Mount	200 mA 500 ns	1 A	10 µA	10 pF	600 V	DO-214AC SMA	75 ns	DO-214AC (SMA)
Micro Commercial Components US1JE-TP	1.7 V	150 °C	-50 °C	Standard	Surface Mount	200 mA 500 ns	1 A	10 µA	17 pF	600 V	DO-214AC SMA	75 ns	DO-214AC (SMAE)
Micro Commercial Components US1J-TP-HF	1.7 V	175 ░C	-65 C	Standard	Surface Mount	200 mA 500 ns	1 A	10 µA	10 pF	600 V	DO-214AC SMA	75 ns	DO-214AC (SMA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 600 V 1A Surface Mount DO-214AC (SMAE)
