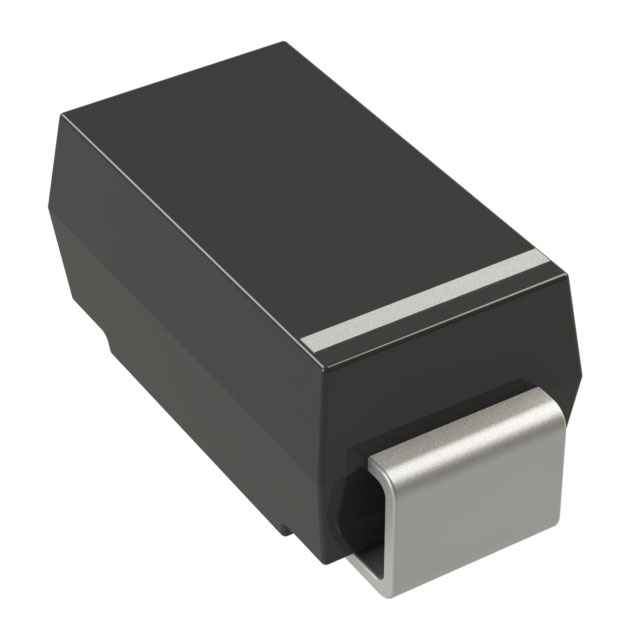

US1J-TP-HF

Active

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

Active

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	US1J-TP-HF

Capacitance @ Vr, F	10 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-214AC, SMA
Reverse Recovery Time (trr)	75 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AC (SMA)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Mounting Type	Speed	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Reverse Recovery Time (trr)	Supplier Device Package
Micro Commercial Components US1J-TP	1.7 V	175 ░C	-65 C	Standard	Surface Mount	200 mA 500 ns	1 A	10 µA	10 pF	600 V	DO-214AC SMA	75 ns	DO-214AC (SMA)
Micro Commercial Components US1JE-TP	1.7 V	150 °C	-50 °C	Standard	Surface Mount	200 mA 500 ns	1 A	10 µA	17 pF	600 V	DO-214AC SMA	75 ns	DO-214AC (SMAE)
Micro Commercial Components US1J-TP-HF	1.7 V	175 ░C	-65 C	Standard	Surface Mount	200 mA 500 ns	1 A	10 µA	10 pF	600 V	DO-214AC SMA	75 ns	DO-214AC (SMA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 600 V 1A Surface Mount DO-214AC (SMA)
