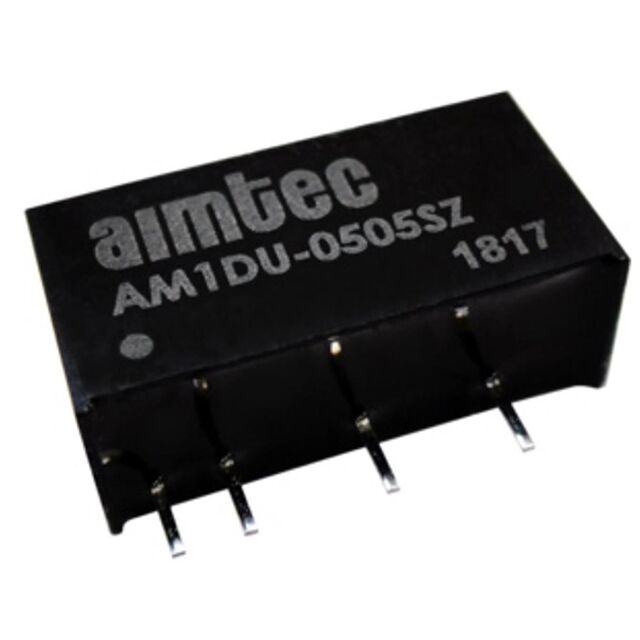

AM1DU-0505SH30Z
Unknownaimtec
MODULE DC-DC 5VIN 1-OUT 5V 0.2A 1W 4-PIN SIP MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM1DU-0505SH30Z
Unknownaimtec
MODULE DC-DC 5VIN 1-OUT 5V 0.2A 1W 4-PIN SIP MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1DU-0505SH30Z |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 76 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension [x] | 19.5 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [y] | 7.2 mm |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 10 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 9 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.00 | |
| 5 | $ 12.61 | |||
| 10 | $ 12.22 | |||
| 20 | $ 11.70 | |||
| 40 | $ 11.02 | |||
| 80 | $ 10.92 | |||
Description
General part information
AM1DU Series
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 9V Input
