0190170035

Active

Molex

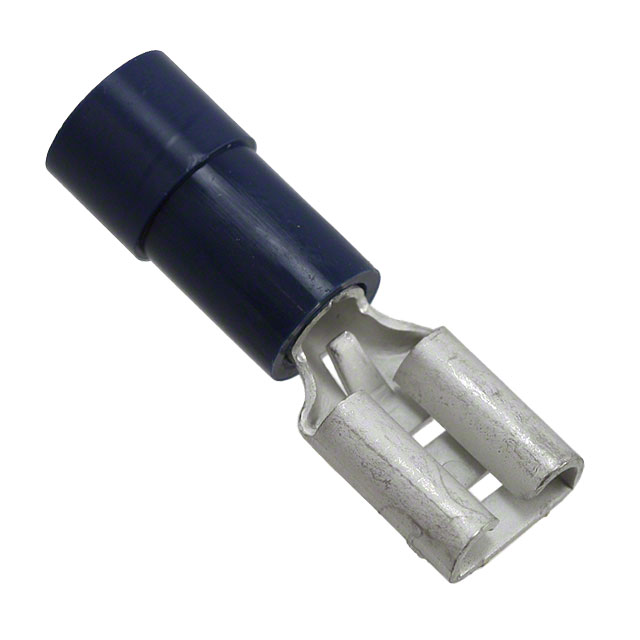

QUICK DISCONNECT TERMINAL 14-16AWG BRASS BLUE F 19.81MM ELECTRO TIN INSULKRIMP™ T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0190440069 Drawing/Datasheet

0190170035

Active

Molex

QUICK DISCONNECT TERMINAL 14-16AWG BRASS BLUE F 19.81MM ELECTRO TIN INSULKRIMP™ T/R

Deep-Dive with AI

DocumentsDatasheet 0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190170035

Color	Blue
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	3.56 mm
Insulation Diameter [diameter]	0.14 in
Length - Overall [x]	20.04 mm
Length - Overall [x]	0.789 in
Mounting Type	Free Hanging (In-Line)
Tab Length	6.35 mm
Tab Length	0.25 in
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp

019017 Series

Part	Tab Thickness	Tab Thickness	Contact Finish	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Terminal Type	Tab Length	Tab Length	Mounting Type	Tab Width	Tab Width	Gender	Color	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall	Length - Overall
Molex 0190170069	0.032 in	0.81 mm	Electro-Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	4.75 mm	0.187 in	Female	Red	3.3 mm	0.13 in	Non-Mating End Insulated	22 AWG	17.5 AWG
Molex 0190170044	0.032 in	0.81 mm	Electro-Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	5.21 mm	0.205 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated
Molex 0190170041	0.032 in	0.81 mm	Tin	Crimp			Brass	Standard	7.87 mm	0.31 in	Free Hanging (In-Line)	6.35 mm	0.25 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated			0.865 in	21.97 mm
Molex 0190170001	0.02 "	0.51 mm	Electro-Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	2.79 mm	0.11 "	Female	Red	3.3 mm	0.13 in	Non-Mating End Insulated	22 AWG	17.5 AWG
Molex 0190170073	0.032 in	0.81 mm	Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	4.75 mm	0.187 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated
Molex 0190170035	0.02 "	0.51 mm	Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	4.75 mm	0.187 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated
Molex 0190170023	0.02 "	0.51 mm	Electro-Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	2.79 mm	0.11 "	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated
Molex 0190170005	0.032 in	0.81 mm	Electro-Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	2.79 mm	0.11 "	Female	Red	3.3 mm	0.13 in	Non-Mating End Insulated	22 AWG	17.5 AWG
Molex 0190170074	0.032 in	0.81 mm	Electro-Tin	Crimp			Brass	Standard	7.87 mm	0.31 in	Free Hanging (In-Line)	6.35 mm	0.25 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated			0.865 in	21.97 mm
Molex 0190170037	0.032 in	0.81 mm	Electro-Tin	Crimp			Brass	Standard	7.87 mm	0.31 in	Free Hanging (In-Line)	6.35 mm	0.25 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated			0.865 in	21.97 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.43
	Tape & Reel (TR)	7500	$ 0.20

Description

General part information

019017 Series

0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Mating End Insulated

Documents

Technical documentation and resources

Datasheet

0190440069 Drawing/Datasheet

Datasheet
