0190170073

Active

Molex

CONN QC RCPT 14-16AWG 0.187

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInsulkrimp Prod Spec 0190440069 Drawing/Datasheet

0190170073

Active

Molex

CONN QC RCPT 14-16AWG 0.187

Deep-Dive with AI

DocumentsInsulkrimp Prod Spec 0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190170073

Color	Blue
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	3.56 mm
Insulation Diameter [diameter]	0.14 in
Length - Overall [x]	20.04 mm
Length - Overall [x]	0.789 in
Mounting Type	Free Hanging (In-Line)
Tab Length	6.35 mm
Tab Length	0.25 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp

019017 Series

Part	Tab Thickness	Tab Thickness	Contact Finish	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Terminal Type	Tab Length	Tab Length	Mounting Type	Tab Width	Tab Width	Gender	Color	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall	Length - Overall
Molex 0190170069	0.032 in	0.81 mm	Electro-Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	4.75 mm	0.187 in	Female	Red	3.3 mm	0.13 in	Non-Mating End Insulated	22 AWG	17.5 AWG
Molex 0190170044	0.032 in	0.81 mm	Electro-Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	5.21 mm	0.205 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated
Molex 0190170041	0.032 in	0.81 mm	Tin	Crimp			Brass	Standard	7.87 mm	0.31 in	Free Hanging (In-Line)	6.35 mm	0.25 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated			0.865 in	21.97 mm
Molex 0190170001	0.02 "	0.51 mm	Electro-Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	2.79 mm	0.11 "	Female	Red	3.3 mm	0.13 in	Non-Mating End Insulated	22 AWG	17.5 AWG
Molex 0190170073	0.032 in	0.81 mm	Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	4.75 mm	0.187 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated
Molex 0190170035	0.02 "	0.51 mm	Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	4.75 mm	0.187 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated
Molex 0190170023	0.02 "	0.51 mm	Electro-Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	2.79 mm	0.11 "	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated
Molex 0190170005	0.032 in	0.81 mm	Electro-Tin	Crimp	20.04 mm	0.789 in	Brass	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	2.79 mm	0.11 "	Female	Red	3.3 mm	0.13 in	Non-Mating End Insulated	22 AWG	17.5 AWG
Molex 0190170074	0.032 in	0.81 mm	Electro-Tin	Crimp			Brass	Standard	7.87 mm	0.31 in	Free Hanging (In-Line)	6.35 mm	0.25 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated			0.865 in	21.97 mm
Molex 0190170037	0.032 in	0.81 mm	Electro-Tin	Crimp			Brass	Standard	7.87 mm	0.31 in	Free Hanging (In-Line)	6.35 mm	0.25 in	Female	Blue	3.56 mm	0.14 in	Non-Mating End Insulated			0.865 in	21.97 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7500	$ 0.11

Description

General part information

019017 Series

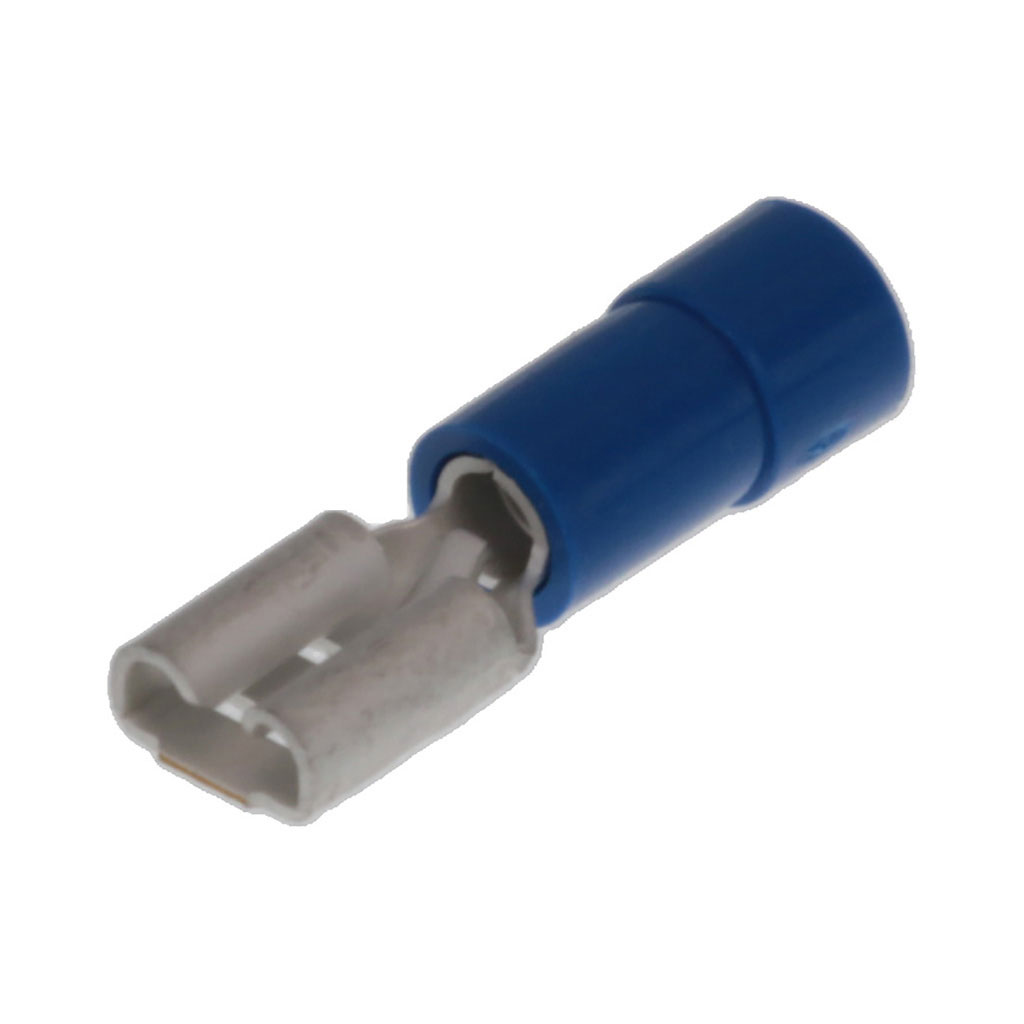

0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Mating End Insulated

Documents

Technical documentation and resources

Insulkrimp Prod Spec

Datasheet

0190440069 Drawing/Datasheet

Datasheet
