09330162728

Active

HARTING Technology Group

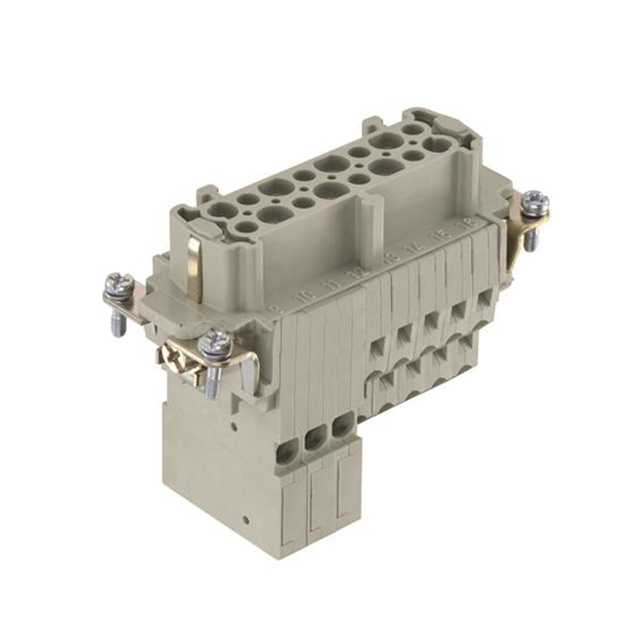

HAN ESS 16 POS. F INSERT CAGE CLAMP TERM ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN ESS 16 POS. F INSERT CAGE CLAMP TERM ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Contact Finish	Housing Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Size	Material Flammability Rating	Current Rating (Amps)	Color	Gender	Number of Positions	Connector Type	Contact Type
HARTING Technology Group 09330162611	Screw	Silver	Polycarbonate (PC)	600 V	125 °C	-40 °C	Copper Alloy	32 B	UL94 V-0	16 A	Gray	Male	16+Ground
HARTING Technology Group 09330162726	Push In	Silver	Polycarbonate (PC)	600 V	125 °C	-40 °C	Copper Alloy	16 B	UL94 V-0	16 A	Gray	Female	16+Ground
HARTING Technology Group 09330162616	Push In	Silver	Polycarbonate (PC)	600 V	125 °C	-40 °C	Copper Alloy	16 B	UL94 V-0	16 A	Gray	Male	16+Ground
HARTING Technology Group 09330162626	Push In	Silver	Polycarbonate (PC)	600 V	125 °C	-40 °C	Copper Alloy	16 B	UL94 V-0	16 A	Gray	Male	16+Ground
HARTING Technology Group 09330162612	Crimp		Polycarbonate (PC)	600 V	125 °C	-40 °C		32 B	UL94 V-0	16 A	Gray	Male	16+Ground	Insert without Contacts	Han®
HARTING Technology Group 09330162728	Push In											Female	16
HARTING Technology Group 09330162712	Crimp		Polycarbonate (PC)	600 V	125 °C	-40 °C		32 B	UL94 V-0	16 A	Gray	Female	16+Ground	Insert without Contacts	Han®
HARTING Technology Group 09330162788	Tension Clamp	Silver	Polycarbonate (PC)	500 V	125 °C	-40 °C	Copper Alloy	32 B	UL94 V-0	16 A	Gray	Female
HARTING Technology Group 09330162791	Screw		Polycarbonate (PC)	250 VDC	125 °C	-40 °C		16 B	UL94 V-0	16 A	Gray	Female	16
HARTING Technology Group 09330162725	Tension Clamp	Silver	Polycarbonate (PC)	500 V	125 °C	-40 °C	Copper Alloy	16 B	UL94 V-0	16 A	Gray	Female	12+Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert 16 Position Push In
