09330162612
ActiveHARTING Technology Group

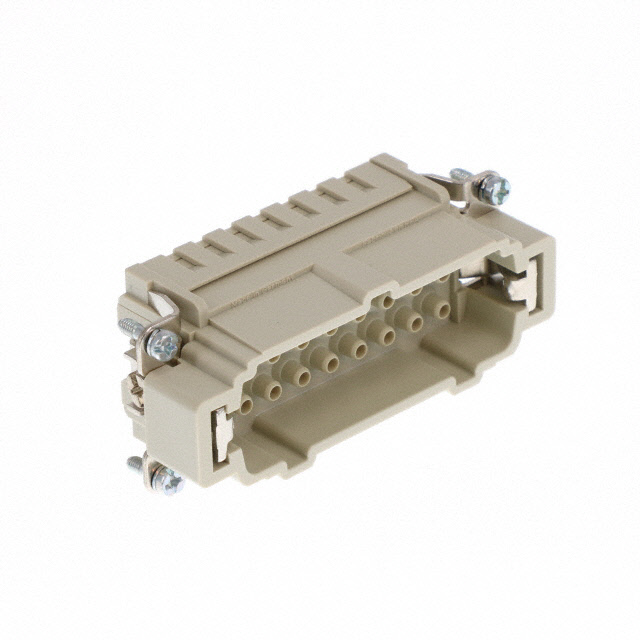

INSERT MALE 16POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09330162612
ActiveHARTING Technology Group
INSERT MALE 16POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09330162612 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | Han® |
| Current Rating (Amps) | 16 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 16+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 32 B |
| Termination Style | Crimp |
| Voltage Rating | 600 V |
09330162 Series
| Part | Termination Style | Contact Finish | Housing Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Size | Material Flammability Rating | Current Rating (Amps) | Color | Gender | Number of Positions | Connector Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | Screw | Silver | Polycarbonate (PC) | 600 V | 125 °C | -40 °C | Copper Alloy | 32 B | UL94 V-0 | 16 A | Gray | Male | 16+Ground | ||
HARTING Technology Group | Push In | Silver | Polycarbonate (PC) | 600 V | 125 °C | -40 °C | Copper Alloy | 16 B | UL94 V-0 | 16 A | Gray | Female | 16+Ground | ||
HARTING Technology Group | Push In | Silver | Polycarbonate (PC) | 600 V | 125 °C | -40 °C | Copper Alloy | 16 B | UL94 V-0 | 16 A | Gray | Male | 16+Ground | ||
HARTING Technology Group | Push In | Silver | Polycarbonate (PC) | 600 V | 125 °C | -40 °C | Copper Alloy | 16 B | UL94 V-0 | 16 A | Gray | Male | 16+Ground | ||
HARTING Technology Group | Crimp | Polycarbonate (PC) | 600 V | 125 °C | -40 °C | 32 B | UL94 V-0 | 16 A | Gray | Male | 16+Ground | Insert without Contacts | Han® | ||
HARTING Technology Group | Push In | Female | 16 | ||||||||||||
HARTING Technology Group | Crimp | Polycarbonate (PC) | 600 V | 125 °C | -40 °C | 32 B | UL94 V-0 | 16 A | Gray | Female | 16+Ground | Insert without Contacts | Han® | ||
HARTING Technology Group | Tension Clamp | Silver | Polycarbonate (PC) | 500 V | 125 °C | -40 °C | Copper Alloy | 32 B | UL94 V-0 | 16 A | Gray | Female | |||
HARTING Technology Group | Screw | Polycarbonate (PC) | 250 VDC | 125 °C | -40 °C | 16 B | UL94 V-0 | 16 A | Gray | Female | 16 | ||||
HARTING Technology Group | Tension Clamp | Silver | Polycarbonate (PC) | 500 V | 125 °C | -40 °C | Copper Alloy | 16 B | UL94 V-0 | 16 A | Gray | Female | 12+Ground |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.76 | |
| 10 | $ 21.04 | |||
| 25 | $ 19.73 | |||
| 50 | $ 18.79 | |||
| 100 | $ 17.89 | |||
| 250 | $ 16.77 | |||
| 500 | $ 15.97 | |||
Description
General part information
09330162 Series
Male Insert without Contacts Gray 16+Ground Position Crimp
