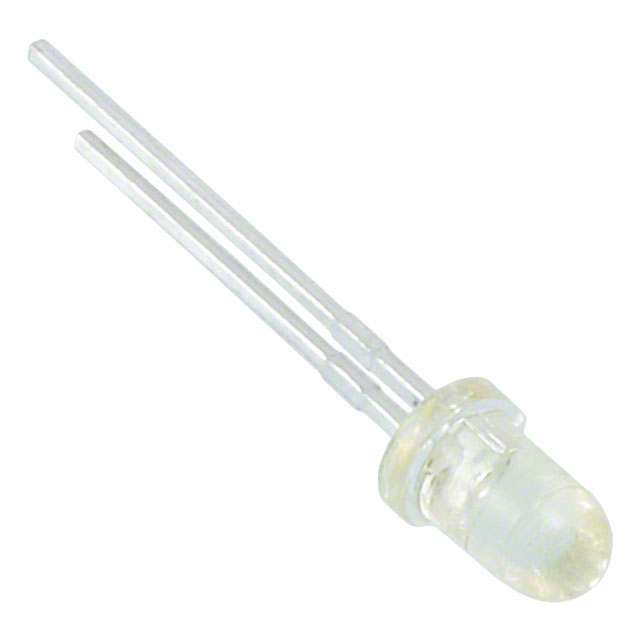

OP265A
ActiveTT Electronics/Optek Technology
EMITTER IR 890NM 50MA RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OP265A
ActiveTT Electronics/Optek Technology
EMITTER IR 890NM 50MA RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OP265A |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | Radial |
| Type | Infrared (IR) |
| Viewing Angle | 18 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength | 890 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.34 | |
| 100 | $ 1.25 | |||
| 250 | $ 1.20 | |||
| 500 | $ 1.17 | |||
| 1000 | $ 1.12 | |||
| 2500 | $ 1.10 | |||
| 5000 | $ 1.07 | |||
Description
General part information
OP265 Series
Infrared (IR) Emitter 890nm 1.8V 50mA 18° Radial
