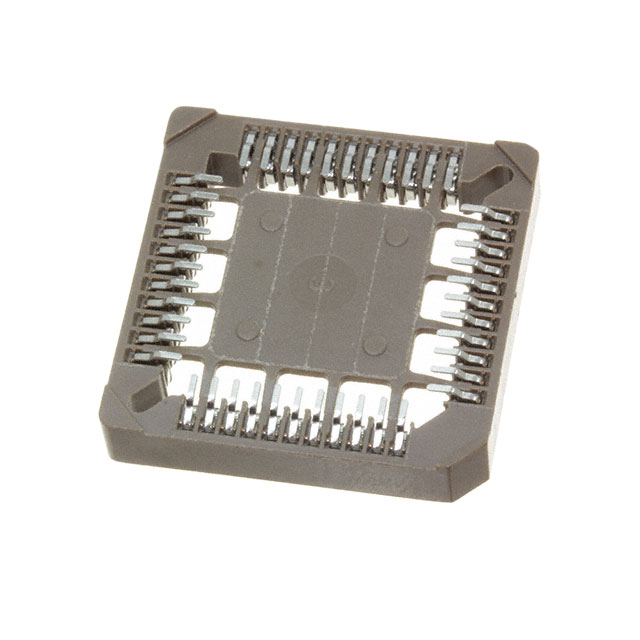

PLCC-44-AT-SMT
ActiveAdam Tech
PLCC SOCKET 44P SMT
Deep-Dive with AI
Search across all available documentation for this part.
PLCC-44-AT-SMT
ActiveAdam Tech
PLCC SOCKET 44P SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PLCC-44-AT-SMT |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.03 µm |
| Contact Finish Thickness - Mating | 80 µin |
| Contact Finish Thickness - Post | 2.03 µm |
| Contact Finish Thickness - Post | 80 µin |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Contact Resistance | 30 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 44 |
| Number of Positions or Pins (Grid) [custom] | 4, 11 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Pitch - Post | 1.27 mm |
| Pitch - Post | 0.05 in |
| Termination | Solder |
| Termination Post Length | 0.008 in |
| Termination Post Length | 2.03 mm |
| Type | PLCC |
PLCC Series
| Part | Contact Material - Post | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Housing Material | Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Resistance | Termination | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Termination Post Length | Termination Post Length | Current Rating (Amps) | Mounting Type | Contact Material - Mating | Material Flammability Rating | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Phosphor Bronze | Closed Frame | 2.03 µm | 80 µin | Tin | Polybutylene Terephthalate (PBT) Glass Filled | PLCC | 2.03 µm | 80 µin | 30 mOhm | Solder | 0.05 in | 1.27 mm | 105 ░C | -55 °C | 0.008 in | 2.03 mm | 1 A | Surface Mount | Phosphor Bronze | UL94 V-0 | 1.27 mm | 0.05 in | |||||
Adam Tech | Phosphor Bronze | Closed Frame | 2.03 µm | 80 µin | Tin | Polybutylene Terephthalate (PBT) Glass Filled | PLCC | 2.03 µm | 80 µin | 30 mOhm | Solder | 0.05 in | 1.27 mm | 105 ░C | -55 °C | 0.126 in | 3.2 mm | 1 A | Through Hole | Phosphor Bronze | UL94 V-0 | 2.54 mm | 0.1 in | 4 11 | 44 | |||
Adam Tech | Phosphor Bronze | Closed Frame | 2.03 µm | 80 µin | Tin | Thermoplastic | PLCC | 2.03 µm | 80 µin | 30 mOhm | Solder | 0.05 in | 1.27 mm | 105 ░C | -55 °C | 0.008 in | 2.03 mm | 1 A | Surface Mount | Phosphor Bronze | UL94 V-0 | 1.27 mm | 0.05 in | 4 11 | 44 | |||
Adam Tech | Phosphor Bronze | Closed Frame | 2.03 µm | 80 µin | Tin | Polybutylene Terephthalate (PBT) Glass Filled | PLCC | 2.03 µm | 80 µin | 30 mOhm | Solder | 0.05 in | 1.27 mm | 105 ░C | -55 °C | 0.126 in | 3.2 mm | 1 A | Through Hole | Phosphor Bronze | UL94 V-0 | 2.54 mm | 0.1 in | |||||
Adam Tech | Phosphor Bronze | Closed Frame | 2.03 µm | 80 µin | Tin | Polybutylene Terephthalate (PBT) Glass Filled | PLCC | 2.03 µm | 80 µin | 30 mOhm | Solder | 0.05 in | 1.27 mm | 105 ░C | -55 °C | 0.126 in | 3.2 mm | 1 A | Through Hole | Phosphor Bronze | UL94 V-0 | 2.54 mm | 0.1 in | 5 | 20 | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.24 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.66 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.52 | |||
Description
General part information
PLCC Series
44 (4 x 11) Pos PLCC Socket Tin Surface Mount
