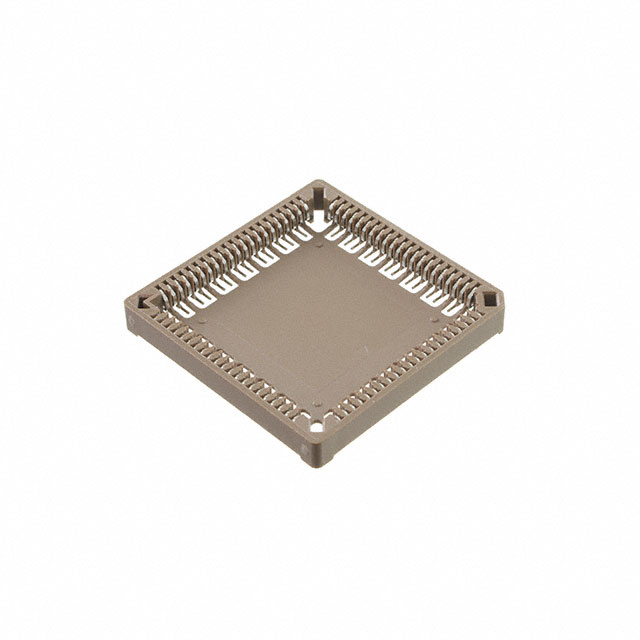

PLCC-84-AT-SMT

Obsolete

Adam Tech

PLCC SOCKET 84P SMT

Deep-Dive with AI

DocumentsDatasheet Soldering Profile PLCC-SMT +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PLCC-84-AT-SMT

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.03 µm
Contact Finish Thickness - Mating	80 µin
Contact Finish Thickness - Post	2.03 µm
Contact Finish Thickness - Post	80 µin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	1.27 mm
Pitch - Post	0.05 in
Termination	Solder
Termination Post Length	0.008 in
Termination Post Length	2.03 mm
Type	PLCC

PLCC Series

Part	Contact Material - Post	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Housing Material	Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Resistance	Termination	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination Post Length	Termination Post Length	Current Rating (Amps)	Mounting Type	Contact Material - Mating	Material Flammability Rating	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Adam Tech PLCC-84-AT-SMT	Phosphor Bronze	Closed Frame	2.03 µm	80 µin	Tin	Polybutylene Terephthalate (PBT) Glass Filled	PLCC	2.03 µm	80 µin	30 mOhm	Solder	0.05 in	1.27 mm	105 ░C	-55 °C	0.008 in	2.03 mm	1 A	Surface Mount	Phosphor Bronze	UL94 V-0	1.27 mm	0.05 in
Adam Tech PLCC-44-AT	Phosphor Bronze	Closed Frame	2.03 µm	80 µin	Tin	Polybutylene Terephthalate (PBT) Glass Filled	PLCC	2.03 µm	80 µin	30 mOhm	Solder	0.05 in	1.27 mm	105 ░C	-55 °C	0.126 in	3.2 mm	1 A	Through Hole	Phosphor Bronze	UL94 V-0	2.54 mm	0.1 in	4 11	44
Adam Tech PLCC-44-AT-SMT	Phosphor Bronze	Closed Frame	2.03 µm	80 µin	Tin	Thermoplastic	PLCC	2.03 µm	80 µin	30 mOhm	Solder	0.05 in	1.27 mm	105 ░C	-55 °C	0.008 in	2.03 mm	1 A	Surface Mount	Phosphor Bronze	UL94 V-0	1.27 mm	0.05 in	4 11	44
Adam Tech PLCC-52-AT	Phosphor Bronze	Closed Frame	2.03 µm	80 µin	Tin	Polybutylene Terephthalate (PBT) Glass Filled	PLCC	2.03 µm	80 µin	30 mOhm	Solder	0.05 in	1.27 mm	105 ░C	-55 °C	0.126 in	3.2 mm	1 A	Through Hole	Phosphor Bronze	UL94 V-0	2.54 mm	0.1 in
Adam Tech PLCC-20-AT	Phosphor Bronze	Closed Frame	2.03 µm	80 µin	Tin	Polybutylene Terephthalate (PBT) Glass Filled	PLCC	2.03 µm	80 µin	30 mOhm	Solder	0.05 in	1.27 mm	105 ░C	-55 °C	0.126 in	3.2 mm	1 A	Through Hole	Phosphor Bronze	UL94 V-0	2.54 mm	0.1 in			5	20	4
