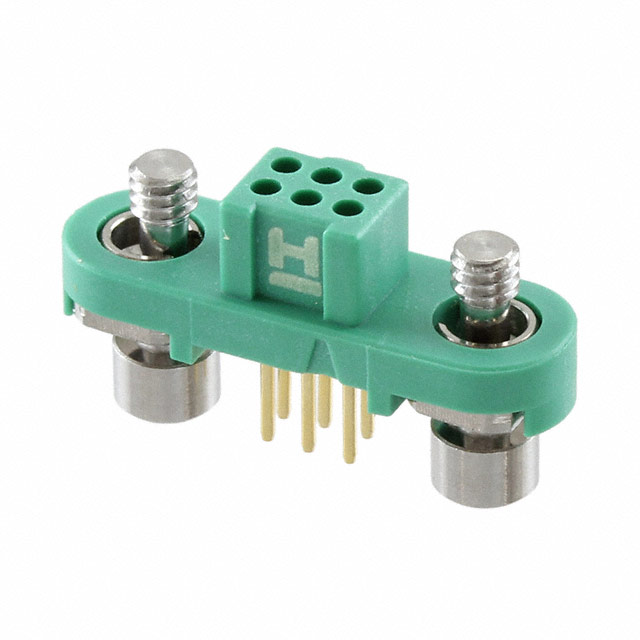

G125-FV10605F1P
ActiveHarwin Inc.
CONNECTOR, RCPT, 6POS, 2ROW, 1.25MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
G125-FV10605F1P
ActiveHarwin Inc.
CONNECTOR, RCPT, 6POS, 2ROW, 1.25MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-FV10605F1P |
|---|---|
| Applications | Automotive, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2 A |
| Features | Jackscrews, Pick and Place, Polarizing Key |
| Insulation Color | Green |
| Insulation Height | 0.207 in |
| Insulation Height | 5.25 mm |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
G125-FV1 Series
| Part | Contact Finish - Mating | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Mounting Type | Style | Insulation Color | Features | Number of Positions | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Voltage Rating | Contact Shape | Contact Material | Current Rating (Amps) | Termination | Connector Type | Number of Rows | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post | Insulation Material | Mated Stacking Heights | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Fastening Type | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Gold | UL94 V-0 | 1.25 mm | 0.049 in | All | Through Hole | Board to Board Cable | Green | Mating Flange Pick and Place Polarizing Key | 10 | Female Socket | 0.203 Ám | 8 Áin | 0.207 in | 5.25 mm | 8 µin | 0.203 µm | Gold | 450 V | Circular | Copper Alloy | 2 A | Solder | Receptacle | 2 | 0.049 in | 1.25 mm | 0.118 in | 3 mm | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 7.25 mm 7.33 mm | -65 ░C | 150 °C | ||||
Harwin Inc. | Gold | UL94 V-0 | 1.25 mm | 0.049 in | All | Through Hole | Board to Board Cable | Green | Pick and Place Polarizing Key | 12 | Female Socket | 0.203 Ám | 8 Áin | 0.207 in | 5.25 mm | 8 µin | 0.203 µm | Gold | 450 V | Circular | Copper Alloy | 2 A | Solder | Receptacle | 2 | 0.049 in | 1.25 mm | 0.118 in | 3 mm | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 7.25 mm 7.33 mm | -65 ░C | 150 °C | ||||
Harwin Inc. | Gold | UL94 V-0 | 1.25 mm | 0.049 in | All | Through Hole | Board to Board Cable | Green | Jackscrews Pick and Place Polarizing Key | 6 | Female Socket | 0.203 Ám | 8 Áin | 0.207 in | 5.25 mm | Gold | Circular | Copper Alloy | 2 A | Solder | Receptacle | 2 | 0.049 in | 1.25 mm | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | -65 ░C | 150 °C | Automotive General Purpose | |||||||||
Harwin Inc. | Gold | UL94 V-0 | 1.25 mm | 0.049 in | All | Through Hole | Board to Board Cable | Green | Pick and Place Polarizing Key | 26 | Female Socket | 0.203 Ám | 8 Áin | 0.207 in | 5.25 mm | Gold | Circular | Copper Alloy | 2 A | Solder | Receptacle | 2 | 0.049 in | 1.25 mm | 0.118 in | 3 mm | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | -65 ░C | 150 °C | Automotive General Purpose | Latch Holder | ||||||
Harwin Inc. | Gold | UL94 V-0 | 1.25 mm | 0.049 in | All | Through Hole | Board to Board Cable | Green | Jackscrews Pick and Place Polarizing Key | 50 | Female Socket | 0.203 Ám | 8 Áin | 0.207 in | 5.25 mm | 8 µin | 0.203 µm | Gold | 450 V | Circular | Copper Alloy | 2 A | Solder | Receptacle | 2 | 0.049 in | 1.25 mm | 0.118 in | 3 mm | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 7.25 mm 7.33 mm | -65 ░C | 150 °C | ||||
Harwin Inc. | Gold | UL94 V-0 | 1.25 mm | 0.049 in | All | Through Hole | Board to Board Cable | Green | Mating Flange Mounting Flange Pick and Place Polarizing Key | Female Socket | 0.207 in | 5.25 mm | Gold | 450 V | Circular | Beryllium Copper | 2 A 10 A | Solder | Receptacle | 2 | 0.049 in | 1.25 mm | 0.118 in | 3 mm | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | -65 ░C | 150 °C | 2 | 8 | ||||||||
Harwin Inc. | Gold | UL94 V-0 | 1.25 mm | 0.049 in | All | Through Hole | Board to Board Cable | Green | Pick and Place Polarizing Key | 6 | Female Socket | 0.203 Ám | 8 Áin | 0.207 in | 5.25 mm | 8 µin | 0.203 µm | Gold | 450 V | Circular | Copper Alloy | 2 A | Solder | Receptacle | 2 | 0.049 in | 1.25 mm | 0.118 in | 3 mm | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 7.25 mm 7.33 mm | -65 ░C | 150 °C | ||||
Harwin Inc. | Gold | UL94 V-0 | 1.25 mm | 0.049 in | All | Through Hole | Board to Board Cable | Green | Mating Flange Pick and Place Polarizing Key | 6 | Female Socket | 0.203 Ám | 8 Áin | 0.207 in | 5.25 mm | 8 µin | 0.203 µm | Gold | 450 V | Circular | Copper Alloy | 2 A | Solder | Receptacle | 2 | 0.049 in | 1.25 mm | 0.118 in | 3 mm | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 7.25 mm 7.33 mm | -65 ░C | 150 °C | ||||
Harwin Inc. | Gold | UL94 V-0 | 1.25 mm | 0.049 in | All | Through Hole | Board to Board Cable | Green | Jackscrews Pick and Place Polarizing Key | 10 | Female Socket | 0.203 Ám | 8 Áin | 0.207 in | 5.25 mm | Gold | Circular | Copper Alloy | 2 A | Solder | Receptacle | 2 | 0.049 in | 1.25 mm | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | -65 ░C | 150 °C | Automotive General Purpose | |||||||||
Harwin Inc. | Gold | UL94 V-0 | 1.25 mm | 0.049 in | All | Through Hole | Board to Board Cable | Green | Pick and Place Polarizing Key | 6 | Female Socket | 0.203 Ám | 8 Áin | 0.207 in | 5.25 mm | Gold | Circular | Copper Alloy | 2 A | Solder | Receptacle | 2 | 0.049 in | 1.25 mm | 0.118 in | 3 mm | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | -65 ░C | 150 °C | Automotive General Purpose | Latch Holder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-FV1 Series
6 Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold
