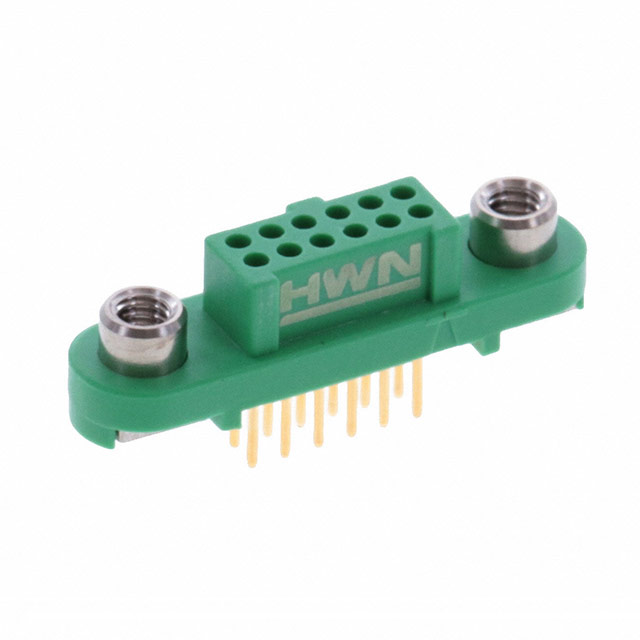

G125-FV11205F2P
ActiveHarwin Inc.
CONN RCPT 12POS 0.049 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
G125-FV11205F2P
ActiveHarwin Inc.
CONN RCPT 12POS 0.049 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-FV11205F2P |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Finish Thickness - Post | 8 µin |
| Contact Finish Thickness - Post | 0.203 µm |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2 A |
| Features | Pick and Place, Polarizing Key |
| Insulation Color | Green |
| Insulation Height | 0.207 in |
| Insulation Height | 5.25 mm |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Mated Stacking Heights | 7.25 mm, 7.33 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 450 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 34.66 | |
| 10 | $ 26.77 | |||
| 100 | $ 21.05 | |||
| 500 | $ 18.03 | |||
Description
General part information
G125-FV1 Series
12 Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold
