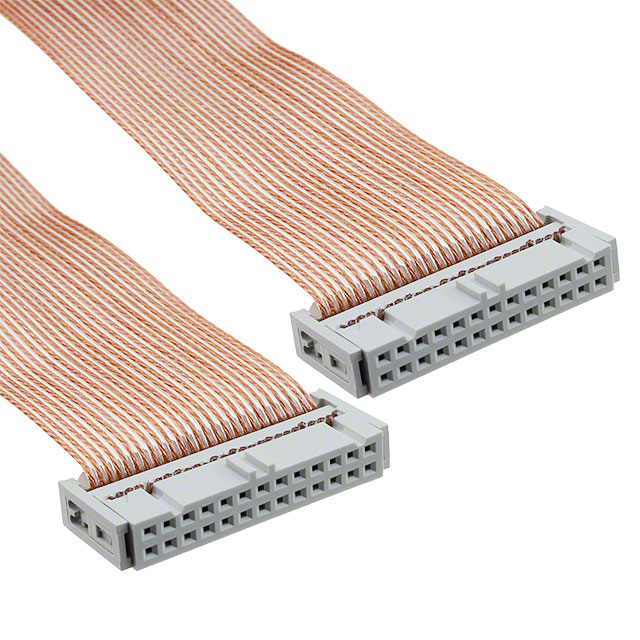

310J101-26-CA003

Active

Cicoil

FLT RIB CBL .050" 28AWG 26C 3'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

310J101-26-CA003

Active

Cicoil

FLT RIB CBL .050" 28AWG 26C 3'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	310J101-26-CA003

Cable Termination	IDC
Color	Clear, Ribbon
Connector Type	Socket to Socket
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	26
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

310J101 Series

Part	Shielding	Voltage	Wire Gauge	Length	Length	Length [x]	Length [x]	Ribbon Thickness	Ribbon Thickness	Cable Type	Pitch [x]	Pitch [x]	Current Rating (Amps)	Ribbon Width [y]	Ribbon Width [y]	Insulation Resistance	Number of Conductors	Ratings	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Material	Ribbon Width	Ribbon Width	Color	Number of Positions	Number of Rows	Pitch - Cable	Pitch - Cable	Cable Termination	Connector Type	Pitch - Connector	Pitch - Connector	Number of Positions
Cicoil 310J101-34	Unshielded	450 V	28 AWG	15.24 m 152.4 m 304.8 mm	1 ft 50 ft 6000 in	100 ft	30.48 m	0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A	1.7 in	43.18 mm	200 MOhm	34	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™
Cicoil 310J101-28-050	Unshielded	450 V	28 AWG	15.24 m	50 ft			0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A			200 MOhm	28	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™	35.55 mm	1.4 in
Cicoil 310J101-26-CA006	Unshielded			1.83 m	6 ft																					Clear Ribbon	26	2	0.05 "	1.27 mm	IDC	Socket to Socket	0.1 in	2.54 mm
Cicoil 310J101-30-050	Unshielded	450 V	28 AWG	15.24 m	50 ft			0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A	1.5 in	38.1 mm	200 MOhm	30	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™
Cicoil 310J101-16-CA006	Unshielded			1.83 m	6 ft																					Clear Ribbon		2	0.05 "	1.27 mm	IDC	Socket to Socket	0.1 in	2.54 mm	16
Cicoil 310J101-50	Unshielded	450 V	28 AWG	15.24 m 60.96 m 304.8 mm	1 ft 50 ft 200 '	10 ft 100 ft	3.05 m 30.48 m	0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A			200 MOhm	50	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™	63.5 mm	2.5 "
Cicoil 310J101-26-CA003	Unshielded					3 ft	914.4 mm																			Clear Ribbon	26	2	0.05 "	1.27 mm	IDC	Socket to Socket	0.1 in	2.54 mm
Cicoil 310J101-16	Unshielded	450 V	28 AWG	7.62 m 15.24 m 152.4 m 304.8 m 304.8 mm	1 ft 25 ft 50 ft 1000 ft 6000 in	10 ft 100 ft	3.05 m 30.48 m	0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A	0.8 in	20.32 mm	200 MOhm	16	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™
Cicoil 310J101-64-050	Unshielded	450 V	28 AWG	15.24 m	50 ft			0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A	3.2 in	81.28 mm	200 MOhm	64	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™
Cicoil 310J101-14-CA003	Unshielded					3 ft	914.4 mm																			Clear Ribbon	14	2	0.05 "	1.27 mm	IDC	Socket to Socket	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.03
		34	$ 21.16

Description

General part information

310J101 Series

26 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)

Documents

Technical documentation and resources
