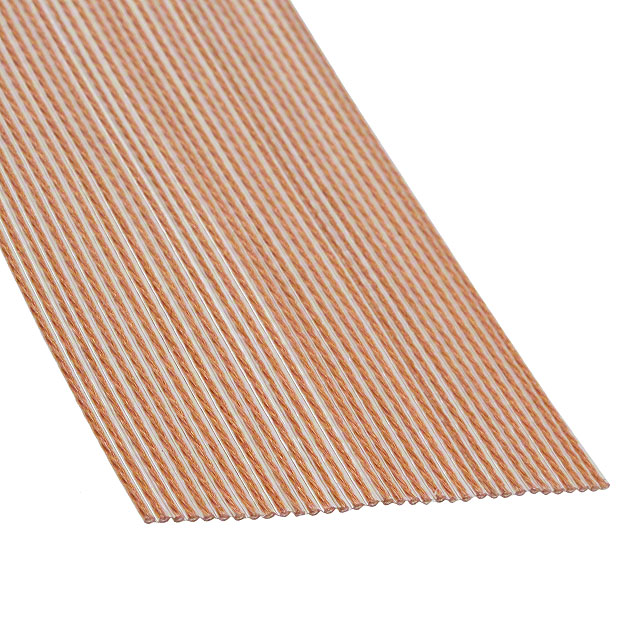

310J101-34

Unknown

Cicoil

CBL RIBN 34COND 0.05 CLEAR 5'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

310J101-34

Unknown

Cicoil

CBL RIBN 34COND 0.05 CLEAR 5'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	310J101-34

Cable Type	Flat Cable
Conductor Material	Copper, Bare
Current Rating (Amps)	5 A
Insulation Resistance	200 MOhm
Jacket (Insulation) Material	Flexx-Sil™
Jacket Color	Clear
Length	15.24 m, 304.8 mm, 152.4 m
Length	50 ft, 1 ft, 6000 in
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	34
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	CE, UL E324413
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [y]	1.7 in
Ribbon Width [y]	43.18 mm
Shielding	Unshielded
Voltage	450 V
Wire Gauge	28 AWG

310J101 Series

Part	Shielding	Voltage	Wire Gauge	Length	Length	Length [x]	Length [x]	Ribbon Thickness	Ribbon Thickness	Cable Type	Pitch [x]	Pitch [x]	Current Rating (Amps)	Ribbon Width [y]	Ribbon Width [y]	Insulation Resistance	Number of Conductors	Ratings	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Material	Ribbon Width	Ribbon Width	Color	Number of Positions	Number of Rows	Pitch - Cable	Pitch - Cable	Cable Termination	Connector Type	Pitch - Connector	Pitch - Connector	Number of Positions
Cicoil 310J101-34	Unshielded	450 V	28 AWG	15.24 m 152.4 m 304.8 mm	1 ft 50 ft 6000 in	100 ft	30.48 m	0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A	1.7 in	43.18 mm	200 MOhm	34	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™
Cicoil 310J101-28-050	Unshielded	450 V	28 AWG	15.24 m	50 ft			0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A			200 MOhm	28	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™	35.55 mm	1.4 in
Cicoil 310J101-26-CA006	Unshielded			1.83 m	6 ft																					Clear Ribbon	26	2	0.05 "	1.27 mm	IDC	Socket to Socket	0.1 in	2.54 mm
Cicoil 310J101-30-050	Unshielded	450 V	28 AWG	15.24 m	50 ft			0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A	1.5 in	38.1 mm	200 MOhm	30	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™
Cicoil 310J101-16-CA006	Unshielded			1.83 m	6 ft																					Clear Ribbon		2	0.05 "	1.27 mm	IDC	Socket to Socket	0.1 in	2.54 mm	16
Cicoil 310J101-50	Unshielded	450 V	28 AWG	15.24 m 60.96 m 304.8 mm	1 ft 50 ft 200 '	10 ft 100 ft	3.05 m 30.48 m	0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A			200 MOhm	50	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™	63.5 mm	2.5 "
Cicoil 310J101-26-CA003	Unshielded					3 ft	914.4 mm																			Clear Ribbon	26	2	0.05 "	1.27 mm	IDC	Socket to Socket	0.1 in	2.54 mm
Cicoil 310J101-16	Unshielded	450 V	28 AWG	7.62 m 15.24 m 152.4 m 304.8 m 304.8 mm	1 ft 25 ft 50 ft 1000 ft 6000 in	10 ft 100 ft	3.05 m 30.48 m	0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A	0.8 in	20.32 mm	200 MOhm	16	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™
Cicoil 310J101-64-050	Unshielded	450 V	28 AWG	15.24 m	50 ft			0.89 mm	0.035 in	Flat Cable	0.05 in	1.27 mm	5 A	3.2 in	81.28 mm	200 MOhm	64	CE UL E324413	Copper Bare	-65 ░C	260 ░C	Clear	Flexx-Sil™
Cicoil 310J101-14-CA003	Unshielded					3 ft	914.4 mm																			Clear Ribbon	14	2	0.05 "	1.27 mm	IDC	Socket to Socket	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.38
		1	$ 0.10
		2	$ 0.05
		3	$ 0.03
		5	$ 0.02
		7	$ 0.01
		10	$ 0.01
		500	$ 5.59
		1000	$ 5.09
		1500	$ 5.00

Description

General part information

310J101 Series

Flat Ribbon Cable Clear 34 Conductors 0.050" (1.27mm) Flat Cable 1.00' (304.80mm)
