0349127043

Active

Molex

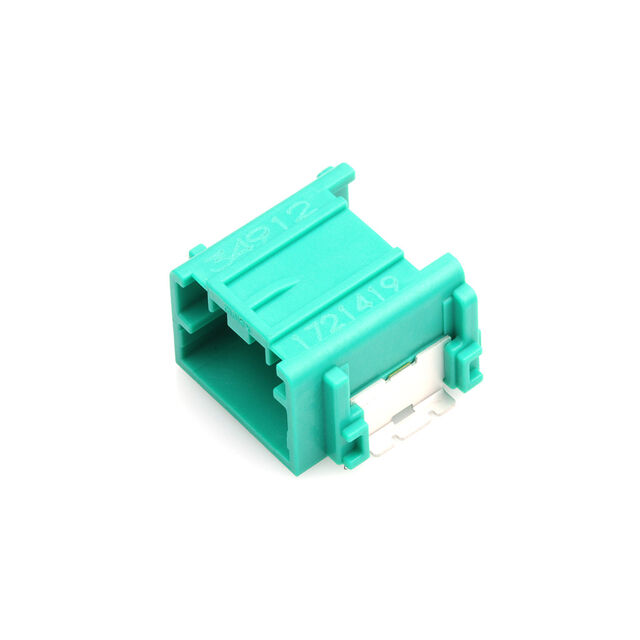

CONN HEADER SMD R/A 4POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0349127043

Active

Molex

CONN HEADER SMD R/A 4POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0349127043

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Green
Insulation Height [z]	0.372 in
Insulation Height [z]	9.44 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034912 Series

Part	Insulation Color	Current Rating (Amps)	Number of Rows	Contact Shape	Fastening Type	Style	Mounting Type	Termination	Connector Type	Insulation Height [z]	Insulation Height [z]	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Contact Finish - Mating	Number of Positions Loaded	Number of Positions	Voltage Rating	Contact Finish - Post	Contact Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Insulation Height	Insulation Height	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)
Molex 0349126021	Gray	4 A	1	Square	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Pin	Gold	All	2	14 V	Tin	Brass	Solder Retention	100 °C	-40 °C
Molex 0349127080	Black		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header			Shrouded - 4 Wall	0.079 in	2 mm	Male Blade	Gold	All	8			Brass	Solder Retention			Automotive	0.391 in	9.93 mm
Molex 0349126081	Gray		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade	Gold	All	8			Brass	Solder Retention			Automotive			UL94 V-0	5.55 mm	0.218 in
Molex 0349128023	Green	4 A	1	Square	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Pin		All	2	14 V	Tin	Brass	Solder Retention	100 °C	-40 °C				UL94 HB
Molex 0349128042	Gray		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade		All	4		Tin	Brass	Solder Retention			Automotive			UL94 V-0	5.55 mm	0.218 in
Molex 0349128021	Gray		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade		All	2		Tin	Brass	Solder Retention			Automotive			UL94 V-0	5.55 mm	0.218 in
Molex 0349127043	Green		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade	Gold	All	4			Brass	Solder Retention			Automotive
Molex 0349126040	Black		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade	Gold	All	4			Brass	Solder Retention			Automotive			UL94 V-0	5.55 mm	0.218 in
Molex 0349126082	Gray		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade	Gold	All	8			Brass	Solder Retention			Automotive			UL94 V-0	5.55 mm	0.218 in
Molex 0349129041	Gray		1	Square	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Pin		All	4	500 V	Tin	Brass	Solder Retention	105 ░C	-40 °C	Automotive				5.55 mm	0.218 in	Varies by Wire Gauge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3132	$ 2.03

Description

General part information

034912 Series

Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)
