0349128023

Active

Molex

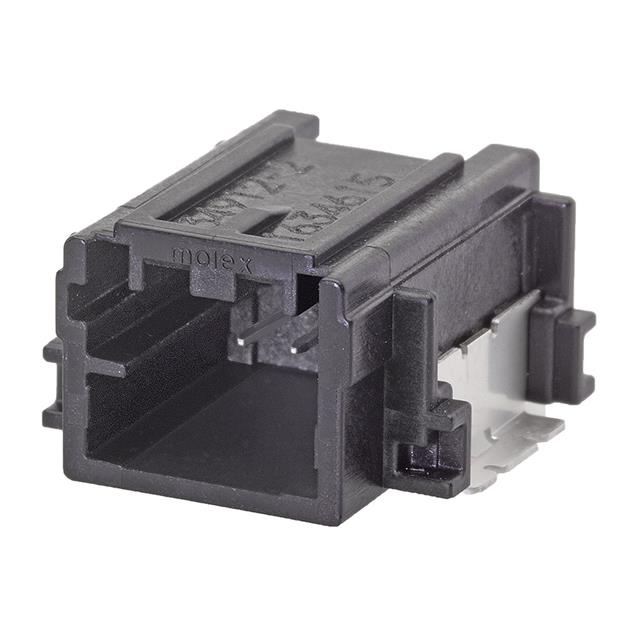

MINI50 RAHDR SMT 2CKT BLK POL D

Deep-Dive with AI

Search across all available documentation for this part.

0349128023

Active

Molex

MINI50 RAHDR SMT 2CKT BLK POL D

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0349128023

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	4 A
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Green
Insulation Height [z]	0.372 in
Insulation Height [z]	9.44 mm
Material Flammability Rating	UL94 HB
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	14 V

034912 Series

Part	Insulation Color	Current Rating (Amps)	Number of Rows	Contact Shape	Fastening Type	Style	Mounting Type	Termination	Connector Type	Insulation Height [z]	Insulation Height [z]	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Contact Finish - Mating	Number of Positions Loaded	Number of Positions	Voltage Rating	Contact Finish - Post	Contact Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Insulation Height	Insulation Height	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)
Molex 0349126021	Gray	4 A	1	Square	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Pin	Gold	All	2	14 V	Tin	Brass	Solder Retention	100 °C	-40 °C
Molex 0349127080	Black		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header			Shrouded - 4 Wall	0.079 in	2 mm	Male Blade	Gold	All	8			Brass	Solder Retention			Automotive	0.391 in	9.93 mm
Molex 0349126081	Gray		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade	Gold	All	8			Brass	Solder Retention			Automotive			UL94 V-0	5.55 mm	0.218 in
Molex 0349128023	Green	4 A	1	Square	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Pin		All	2	14 V	Tin	Brass	Solder Retention	100 °C	-40 °C				UL94 HB
Molex 0349128042	Gray		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade		All	4		Tin	Brass	Solder Retention			Automotive			UL94 V-0	5.55 mm	0.218 in
Molex 0349128021	Gray		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade		All	2		Tin	Brass	Solder Retention			Automotive			UL94 V-0	5.55 mm	0.218 in
Molex 0349127043	Green		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade	Gold	All	4			Brass	Solder Retention			Automotive
Molex 0349126040	Black		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade	Gold	All	4			Brass	Solder Retention			Automotive			UL94 V-0	5.55 mm	0.218 in
Molex 0349126082	Gray		1	Rectangular	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Blade	Gold	All	8			Brass	Solder Retention			Automotive			UL94 V-0	5.55 mm	0.218 in
Molex 0349129041	Gray		1	Square	Latch Holder	Board to Cable/Wire	Surface Mount Right Angle	Solder	Header	0.372 in	9.44 mm	Shrouded - 4 Wall	0.079 in	2 mm	Male Pin		All	4	500 V	Tin	Brass	Solder Retention	105 ░C	-40 °C	Automotive				5.55 mm	0.218 in	Varies by Wire Gauge
