TB1-2A-DC-6

Active

Switch Components

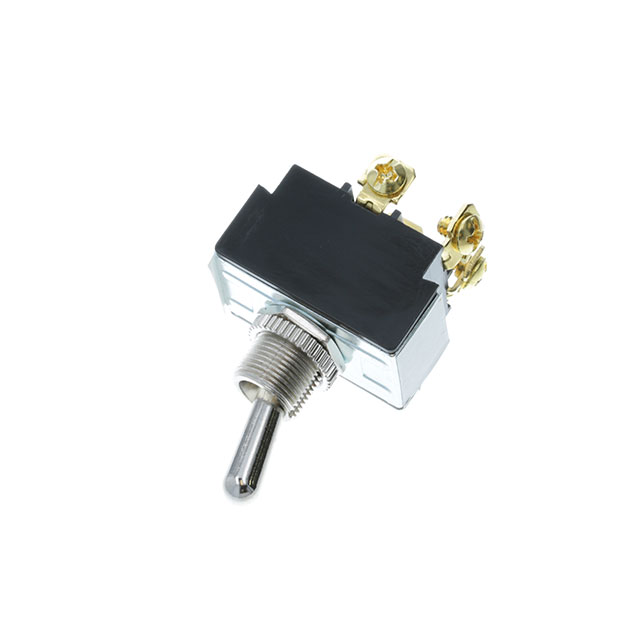

SWITCH TOGGLE DPST 20A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TB1-2A-DC-6

Active

Switch Components

SWITCH TOGGLE DPST 20A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TB1-2A-DC-6

Actuator Length [x]	16.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPST
Current Rating (Amps)	21 A, 20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

tb-tb1 Series

Part	Actuator Length [z]	Ingress Protection	Electrical Life	Switch Function	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Type	Voltage Rating - DC	Bushing Thread	Illumination	Current Rating (Amps)	Termination Style	Actuator Material	Actuator Length [x]	Voltage Rating - AC
Switch Components TB1-1G-DC-WW	15.3 mm	IP67 - Dust Tight Waterproof	6000 Cycles	Mom-Off-Mom	12 mm	85 °C	-40 °C	SPDT	Standard Round	12 V	15/32-32	Non-Illuminated	25 A	Wire Leads	Brass Nickel Plated
Switch Components TB1-2B-DC-1			6000 Cycles	Off-Mom	12 mm			DPST-NO	Standard Round	14 V	15/32-32	Non-Illuminated	20 A 21 A	Quick Connect - 0.250" (6.3mm)		16.5 mm	125 V
Switch Components TB1-2B-DC-6			6000 Cycles	Off-Mom	12 mm			DPST-NO	Standard Round	14 V	15/32-32	Non-Illuminated	20 A 21 A	Screw Terminal		16.5 mm	125 V
Switch Components TB1-2A-DC-6			6000 Cycles	On-Off	12 mm			DPST	Standard Round	14 V	15/32-32	Non-Illuminated	20 A 21 A	Screw Terminal		16.5 mm	125 V
Switch Components TB1-2A-DC-5			6000 Cycles	On-Off	12 mm			DPST	Standard Round	14 V	15/32-32	Non-Illuminated	20 A 21 A	Solder Lug		16.5 mm	125 V
Switch Components TB1-2A-AC-1				On-Off	12.2 mm			DPST	Standard Round		15/32-32	Non-Illuminated	10 A	Quick Connect - 0.250" (6.3mm)		16.5 mm	250 V
Switch Components TB1-2A-DC-1			6000 Cycles	On-Off	12 mm			DPST	Standard Round	14 V	15/32-32	Non-Illuminated	20 A 21 A	Quick Connect - 0.250" (6.3mm)		16.5 mm	125 V
Switch Components TB1-2A-AC-5				On-Off	12.2 mm			DPST	Standard Round		15/32-32	Non-Illuminated	10 A	Solder Lug		16.5 mm	250 V
Switch Components TB1-2B-AC-6				Off-Mom	12.2 mm			DPST	Standard Round		15/32-32	Non-Illuminated	10 A	Screw Terminal		16.5 mm	250 V
Switch Components TB1-1F-DC-WW		IP67 - Dust Tight Waterproof	6000 Cycles	On-Off-On	12 mm	85 °C	-40 °C	SPDT	Standard Round	12 V	15/32-32	Non-Illuminated	25 A	Wire Leads	Brass Nickel Plated	15.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.24
		10	$ 7.89
		25	$ 7.57
		50	$ 7.42
		100	$ 7.17
		250	$ 6.64
		500	$ 5.54
		1000	$ 5.07

Description

General part information

tb-tb1 Series

Toggle Switch DPST Panel Mount
