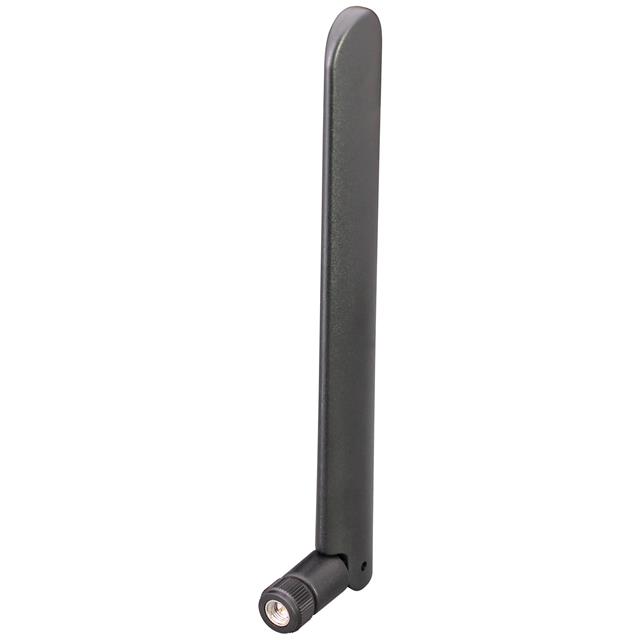

ANT-W63WS4-SMA
ActiveTE Connectivity Linx
RF ANT 2.4/5/6GHZ WIFI6 TILT SMA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-W63WS4-SMA
ActiveTE Connectivity Linx
RF ANT 2.4/5/6GHZ WIFI6 TILT SMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-W63WS4-SMA |
|---|---|
| Antenna Type | Blade, Tilt |
| Applications | Wi-Fi 4, Wi-Fi 6, Wi-Fi 5, U-NII, Bluetooth, Wi-Fi 6E, ZigBee, 802.15.4, 802.11 |
| Frequency (Center/Band) | 6.525 GHz, 5.5 GHz, 2.4425 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.485 GHz, 7.125 GHz, 5.85 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz, 5.925 GHz |
| Gain | 2.6 dBi, 5.5 dBi |
| Height (Max) [Max] | 179.6 mm |
| Height (Max) [Max] | 7.071 in |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| Power - Max [Max] | 10 W |
| VSWR | 1.8, 1.2, 1.6 |
ANT-W63 Series
| Part | Frequency Range [Min] | Frequency Range [Max] | Return Loss | Number of Bands | Gain | RF Family/Standard | Ingress Protection | Frequency (Center/Band) | Power - Max [Max] | Termination | VSWR | Antenna Type | Applications | Height (Max) | Height (Max) [Max] | Frequency Group | Frequency Group [Min] | Frequency Group [Max] | Features | Features | Frequency Group | Height (Max) [Max] | Height (Max) [Max] [z] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Linx | 2.4 GHz 5.15 GHz 5.925 GHz | 2.485 GHz 5.85 GHz 7.125 GHz | -15.6 dB -14 dB -8.5 dB | 3 | 4.5 dBi 6.4 dBi | WiFi | IP67 | 2.4 GHz 5 GHz 6 GHz | 5 W | MHF4 | 1.4 1.5 2.2 | Dome | 802.11 802.15.4 Bluetooth Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 27.79 mm | 1.094 in | 4 GHz | 2 GHz | 3 GHz | ||||||
TE Connectivity Linx | 2.4 GHz 5.15 GHz 5.925 GHz | 2.5 GHz 5.85 GHz 7.125 GHz | -20.8 dB -7 dB -5.4 dB | 3 | 6.1 dBi 6.9 dB | WiFi | 2.4 GHz 5 GHz 6 GHz | 2 W | 802.11ax 802.15.4 Bluetooth Wi-Fi Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E | Cable | 100 mm | Wide Band | ||||||||||||
TE Connectivity Linx | 2.4 GHz 5.15 GHz 5.925 GHz | 2.485 GHz 5.85 GHz 7.125 GHz | -15.6 dB -14 dB -8.5 dB | 3 | 4.5 dBi 6.4 dBi | WiFi | IP67 | 2.4 GHz 5 GHz 6 GHz | 5 W | RP-SMA | 1.4 1.5 2.2 | Dome | 802.11 802.15.4 Bluetooth Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 27.79 mm | 1.094 in | 4 GHz | 2 GHz | 3 GHz | ||||||
TE Connectivity Linx | 2.4 GHz 5.15 GHz 5.925 GHz | 2.485 GHz 5.85 GHz 7.125 GHz | -9.5 dB -8.1 dB -7.7 dB | 3 | 3.2 dBi 3.4 dBi 4.2 dBi | WiFi | 2.4 GHz 5 GHz 6 GHz | 5 W | RP-SMA Male | 2 2.3 2.4 | Tilt/Swivel Whip | Wide Band | 72 mm | 2.835 " | Connector Mount | |||||||||
TE Connectivity Linx | 2.4 GHz 5.15 GHz 5.925 GHz | 2.485 GHz 5.85 GHz 7.125 GHz | -12.7 dB -10.9 dB -9 dB | 3 | 3.7 dBi 5.9 dBi 6.1 dBi | WiFi | 2.4 GHz 5 GHz 6 GHz | 5 W | MHF4 | 1.6 1.8 2.1 | Rigid Patch | 802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 0.051 " | Cable | 100 mm | Wide Band | 1.3 mm | Adhesive | ||||||
TE Connectivity Linx | 2.4 GHz 5.15 GHz 5.925 GHz | 2.485 GHz 5.85 GHz 7.125 GHz | -12.7 dB -10.9 dB -9 dB | 3 | 3.7 dBi 5.9 dBi 6.1 dBi | WiFi | 2.4 GHz 5 GHz 6 GHz | 5 W | I-PEX MHF1 U.FL (UMCC) | 1.6 1.8 2.1 | Rigid Patch | 802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 0.051 " | Cable | 100 mm | Wide Band | 1.3 mm | Adhesive | ||||||
TE Connectivity Linx | 2.4 GHz 5.15 GHz 5.925 GHz | 2.485 GHz 5.85 GHz 7.125 GHz | 3 | 3.2 dBi 7.7 dBi 8.4 dBi | 802.15.4 Bluetooth WiFi | 2.44 GHz 5.5 GHz 6.525 GHz | 2 W | MHF4 | 1.4 2.4 | Flat Patch | 802.11ac 802.11ax 802.11b/g 802.11be 802.11n Bluetooth ISM WLAN Zigbee™ | 0.008 in | Cable | 100 mm | Wide Band | 0.2 mm | Adhesive | |||||||
TE Connectivity Linx | 2.4 GHz 5.15 GHz 5.925 GHz | 2.485 GHz 5.85 GHz 7.125 GHz | 3 | 2.6 dBi 5.5 dBi | 2.4425 GHz 5.5 GHz 6.525 GHz | 10 W | 1.2 1.6 1.8 | Blade Tilt | 802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 7.071 in | 4 GHz | 2 GHz | 3 GHz | 179.6 mm | Connector Mount | |||||||||
TE Connectivity Linx | 2.4 GHz 5.15 GHz 5.925 GHz | 2.485 GHz 5.85 GHz 7.125 GHz | -12.7 dB -10.9 dB -9 dB | 3 | 3.7 dBi 5.9 dBi 6.1 dBi | WiFi | 2.4 GHz 5 GHz 6 GHz | 5 W | MHF4 | 1.6 1.8 2.1 | Rigid Patch | 802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 0.051 " | Cable | 50 mm | Wide Band | 1.3 mm | Adhesive | ||||||
TE Connectivity Linx | 2.4 GHz 5.15 GHz 5.925 GHz | 2.485 GHz 5.85 GHz 7.125 GHz | -15.6 dB -14 dB -8.5 dB | 3 | 4.5 dBi 6.4 dBi | WiFi | IP67 | 2.4 GHz 5 GHz 6 GHz | 5 W | SMA | 1.4 1.5 2.2 | Dome | 802.11 802.15.4 Bluetooth Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 27.79 mm | 1.094 in | 4 GHz | 2 GHz | 3 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.73 | |
| 250 | $ 7.47 | |||
| 500 | $ 7.22 | |||
Description
General part information
ANT-W63 Series
RF ANTENNA 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee Blade, Tilt SMA Male Connector Mount
Documents
Technical documentation and resources
