ANT-W63-WRT-RPS

Active

TE Connectivity Linx

RF ANT 2.4/5/6GHZ DOME PNL RP-SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

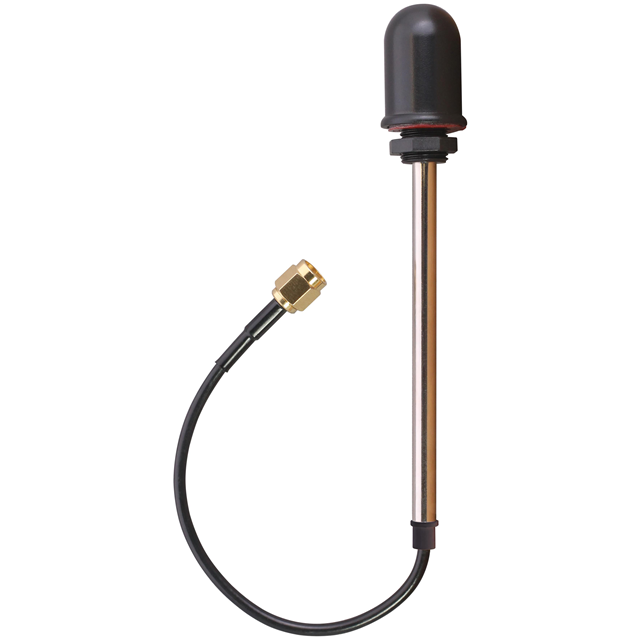

ANT-W63-WRT-RPS

Active

TE Connectivity Linx

RF ANT 2.4/5/6GHZ DOME PNL RP-SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-W63-WRT-RPS

Antenna Type	Dome
Applications	Wi-Fi 6, Wi-Fi 4, Wi-Fi 6E, 802.15.4, Bluetooth, Wi-Fi 5, 802.11, ZigBee
Frequency (Center/Band)	6 GHz, 5 GHz, 2.4 GHz
Frequency Group	4 GHz
Frequency Group [Max]	3 GHz
Frequency Group [Min]	2 GHz
Frequency Range [Max]	2.485 GHz, 7.125 GHz, 5.85 GHz
Frequency Range [Min]	5.15 GHz, 2.4 GHz, 5.925 GHz
Gain	6.4 dBi, 4.5 dBi
Height (Max)	27.79 mm
Height (Max) [Max]	1.094 in
Ingress Protection	IP67
Number of Bands	3
Power - Max [Max]	5 W
Return Loss	-14 dB, -8.5 dB, -15.6 dB
RF Family/Standard	WiFi
Termination	RP-SMA
VSWR	1.4, 1.5, 2.2

ANT-W63 Series

Part	Frequency Range [Min]	Frequency Range [Max]	Return Loss	Number of Bands	Gain	RF Family/Standard	Ingress Protection	Frequency (Center/Band)	Power - Max [Max]	Termination	VSWR	Antenna Type	Applications	Height (Max)	Height (Max) [Max]	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Features	Features	Frequency Group	Height (Max) [Max]	Height (Max) [Max] [z]	Mounting Type
TE Connectivity Linx ANT-W63-WRT-MHF4	2.4 GHz 5.15 GHz 5.925 GHz	2.485 GHz 5.85 GHz 7.125 GHz	-15.6 dB -14 dB -8.5 dB	3	4.5 dBi 6.4 dBi	WiFi	IP67	2.4 GHz 5 GHz 6 GHz	5 W	MHF4	1.4 1.5 2.2	Dome	802.11 802.15.4 Bluetooth Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee	27.79 mm	1.094 in	4 GHz	2 GHz	3 GHz
TE Connectivity Linx ANT-W63-FPC-UFL-100	2.4 GHz 5.15 GHz 5.925 GHz	2.5 GHz 5.85 GHz 7.125 GHz	-20.8 dB -7 dB -5.4 dB	3	6.1 dBi 6.9 dB	WiFi		2.4 GHz 5 GHz 6 GHz	2 W				802.11ax 802.15.4 Bluetooth Wi-Fi Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E						Cable	100 mm	Wide Band
TE Connectivity Linx ANT-W63-WRT-RPS	2.4 GHz 5.15 GHz 5.925 GHz	2.485 GHz 5.85 GHz 7.125 GHz	-15.6 dB -14 dB -8.5 dB	3	4.5 dBi 6.4 dBi	WiFi	IP67	2.4 GHz 5 GHz 6 GHz	5 W	RP-SMA	1.4 1.5 2.2	Dome	802.11 802.15.4 Bluetooth Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee	27.79 mm	1.094 in	4 GHz	2 GHz	3 GHz
TE Connectivity Linx ANT-W63-MON-RPS	2.4 GHz 5.15 GHz 5.925 GHz	2.485 GHz 5.85 GHz 7.125 GHz	-9.5 dB -8.1 dB -7.7 dB	3	3.2 dBi 3.4 dBi 4.2 dBi	WiFi		2.4 GHz 5 GHz 6 GHz	5 W	RP-SMA Male	2 2.3 2.4	Tilt/Swivel Whip									Wide Band	72 mm	2.835 "	Connector Mount
TE Connectivity Linx ANT-W63RPC1-MHF4-100	2.4 GHz 5.15 GHz 5.925 GHz	2.485 GHz 5.85 GHz 7.125 GHz	-12.7 dB -10.9 dB -9 dB	3	3.7 dBi 5.9 dBi 6.1 dBi	WiFi		2.4 GHz 5 GHz 6 GHz	5 W	MHF4	1.6 1.8 2.1	Rigid Patch	802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee		0.051 "				Cable	100 mm	Wide Band	1.3 mm		Adhesive
TE Connectivity Linx ANT-W63RPC1-UFL-100	2.4 GHz 5.15 GHz 5.925 GHz	2.485 GHz 5.85 GHz 7.125 GHz	-12.7 dB -10.9 dB -9 dB	3	3.7 dBi 5.9 dBi 6.1 dBi	WiFi		2.4 GHz 5 GHz 6 GHz	5 W	I-PEX MHF1 U.FL (UMCC)	1.6 1.8 2.1	Rigid Patch	802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee		0.051 "				Cable	100 mm	Wide Band	1.3 mm		Adhesive
TE Connectivity Linx ANT-W63-FPC2-M4-100	2.4 GHz 5.15 GHz 5.925 GHz	2.485 GHz 5.85 GHz 7.125 GHz		3	3.2 dBi 7.7 dBi 8.4 dBi	802.15.4 Bluetooth WiFi		2.44 GHz 5.5 GHz 6.525 GHz	2 W	MHF4	1.4 2.4	Flat Patch	802.11ac 802.11ax 802.11b/g 802.11be 802.11n Bluetooth ISM WLAN Zigbee™		0.008 in				Cable	100 mm	Wide Band	0.2 mm		Adhesive
TE Connectivity Linx ANT-W63WS4-SMA	2.4 GHz 5.15 GHz 5.925 GHz	2.485 GHz 5.85 GHz 7.125 GHz		3	2.6 dBi 5.5 dBi			2.4425 GHz 5.5 GHz 6.525 GHz	10 W		1.2 1.6 1.8	Blade Tilt	802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee		7.071 in	4 GHz	2 GHz	3 GHz				179.6 mm		Connector Mount
TE Connectivity Linx ANT-W63RPC1-MHF4-50	2.4 GHz 5.15 GHz 5.925 GHz	2.485 GHz 5.85 GHz 7.125 GHz	-12.7 dB -10.9 dB -9 dB	3	3.7 dBi 5.9 dBi 6.1 dBi	WiFi		2.4 GHz 5 GHz 6 GHz	5 W	MHF4	1.6 1.8 2.1	Rigid Patch	802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee		0.051 "				Cable	50 mm	Wide Band	1.3 mm		Adhesive
TE Connectivity Linx ANT-W63-WRT-SMA	2.4 GHz 5.15 GHz 5.925 GHz	2.485 GHz 5.85 GHz 7.125 GHz	-15.6 dB -14 dB -8.5 dB	3	4.5 dBi 6.4 dBi	WiFi	IP67	2.4 GHz 5 GHz 6 GHz	5 W	SMA	1.4 1.5 2.2	Dome	802.11 802.15.4 Bluetooth Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee	27.79 mm	1.094 in	4 GHz	2 GHz	3 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 12.15

Description

General part information

ANT-W63 Series

RF ANTENNA 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee Dome RP-SMA Panel Mount
