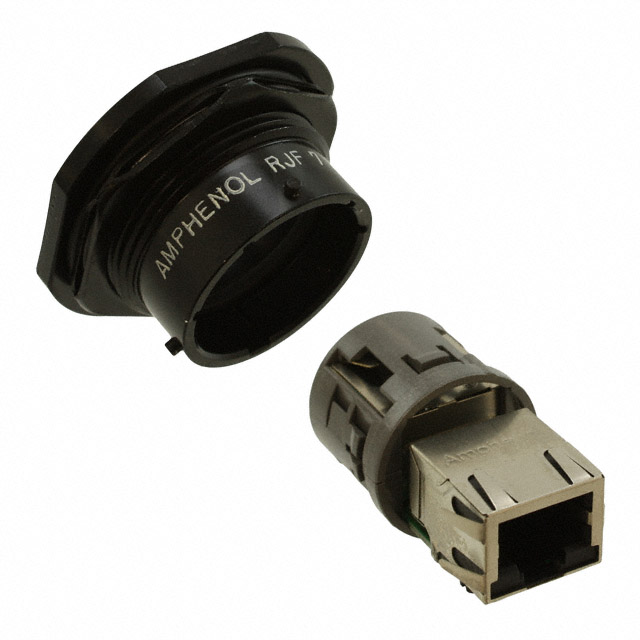

RJF71B

Active

Amphenol Socapex

CONN MOD COUPLER 8P8C TO 8P8C

Search across all available documentation for this part.

Active

Amphenol Socapex

CONN MOD COUPLER 8P8C TO 8P8C

Technical Specifications

Parameters and characteristics for this part

Part	Type	Convert From (Adapter End)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Ratings	Ingress Protection	Features	Shielding	Mounting Feature	Shell Material, Finish
Amphenol Socapex RJF71B	Coupler	Jack 8p8c (RJ45)	Bulkhead Panel Mount	85 °C	-40 °C	8p8c (RJ45) Jack	Cat5e	IP67 - Dust Tight Waterproof	Circular Bayonet Coupling	Unshielded	Front Side Nut	Metal
Amphenol Socapex RJF71RAG	Coupler	Jack 8p8c (RJ45)	Bulkhead Panel Mount Right Angle	85 °C	-40 °C	8p8c (RJ45) Jack	Cat5e		Circular Bayonet Coupling	Shielded	Front Side Nut	Olive Drab Cadmium Plating
Amphenol Socapex RJF71N	Coupler	Jack 8p8c (RJ45)	Bulkhead Panel Mount	85 °C	-40 °C	8p8c (RJ45) Jack	Cat5e	IP67 - Dust Tight Waterproof	Circular Bayonet Coupling	Unshielded	Front Side Nut	Metal Nickel Plated
Amphenol Socapex RJF71RAB	Coupler	Jack 8p8c (RJ45)	Bulkhead Panel Mount Right Angle	85 °C	-40 °C	8p8c (RJ45) Jack	Cat5e		Circular Bayonet Coupling	Shielded	Front Side Nut
Amphenol Socapex RJF71G	Coupler	Jack 8p8c (RJ45)	Bulkhead Panel Mount	85 °C	-40 °C	8p8c (RJ45) Jack	Cat5e	IP67 - Dust Tight Waterproof	Circular Threaded Coupling	Unshielded	Front Side Nut	Aluminum Olive Drab Cadmium Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Unshielded
