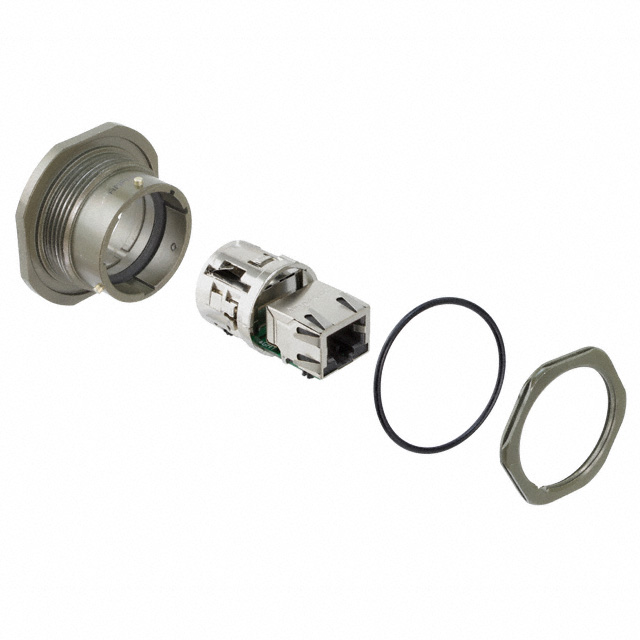

RJF71G
ActiveAmphenol Socapex
CONN MOD COUPLER 8P8C TO 8P8C
Deep-Dive with AI
Search across all available documentation for this part.
RJF71G
ActiveAmphenol Socapex
CONN MOD COUPLER 8P8C TO 8P8C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJF71G |
|---|---|
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Convert To (Adapter End) | 8p8c (RJ45), Jack |
| Features | Circular Threaded Coupling |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Front Side Nut |
| Mounting Type | Bulkhead, Panel Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | Cat5e |
| Shell Material, Finish | Olive Drab Cadmium Plated, Aluminum |
| Shielding | Unshielded |
| Type | Coupler |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 90.18 | |
| 10 | $ 82.75 | |||
| 30 | $ 79.57 | |||
| 50 | $ 76.92 | |||
| 100 | $ 72.67 | |||
Description
General part information
RJF71 Series
Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Unshielded
Documents
Technical documentation and resources
