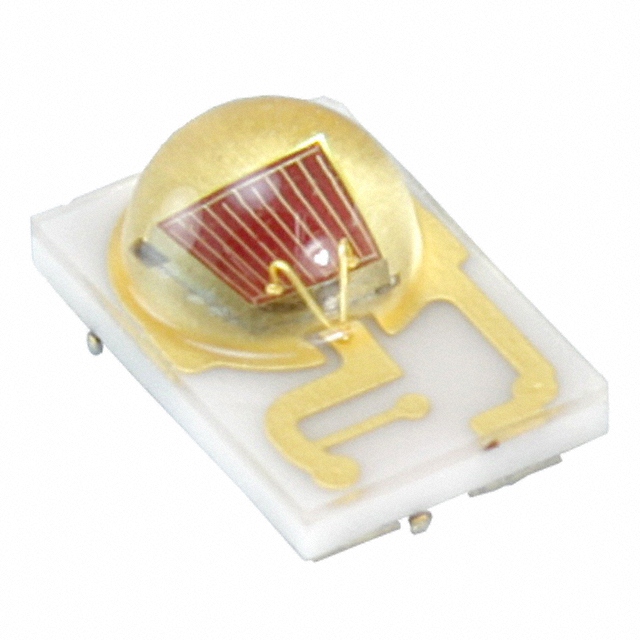

LXM2-PD01-0040
ActiveLumileds
LED LUXEON REBEL RED 627NM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LXM2-PD01-0040
ActiveLumileds
LED LUXEON REBEL RED 627NM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LXM2-PD01-0040 |
|---|---|
| Color | Red |
| Current - Max [Max] | 700 mA |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Lumens/Watt @ Current - Test | 65 lm/W |
| Luminous Flux @ Current/Temperature | 48 lm |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.49 mm |
| Size / Dimension [y] | 3.05 mm |
| Size / Dimension [y] | 0.12 " |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 8 °C/W |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength | 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.22 | |
| 10 | $ 2.98 | |||
| 100 | $ 2.44 | |||
| 500 | $ 2.06 | |||
| Digi-Reel® | 1 | $ 4.22 | ||
| 10 | $ 2.98 | |||
| 100 | $ 2.44 | |||
| 500 | $ 2.06 | |||
| Tape & Reel (TR) | 1000 | $ 1.89 | ||
| 2000 | $ 1.81 | |||
| 5000 | $ 1.78 | |||
Description
General part information
LXM2 Series
LED Lighting Color LUXEON Rebel Color Red 627nm (Typ) 1812 (4532 Metric)
