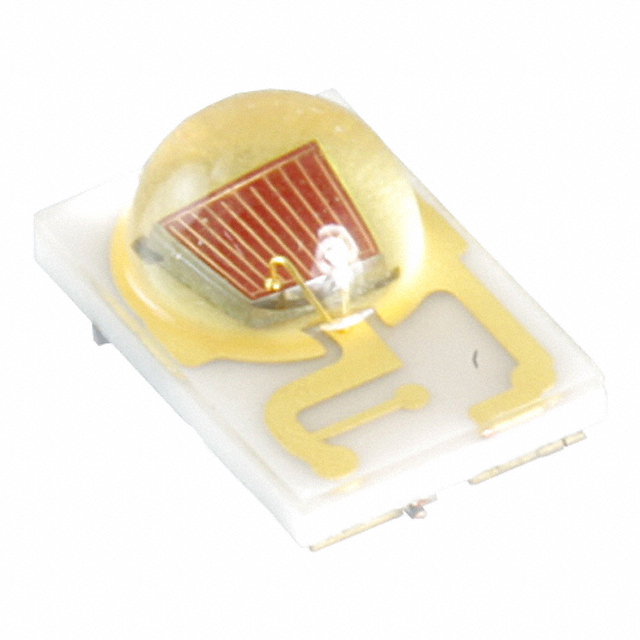

LXM2-PH01-0060

Active

Lumileds

LED LUXEON REBEL ORG 617NM SMD

Search across all available documentation for this part.

Active

Lumileds

LED LUXEON REBEL ORG 617NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	LXM2-PH01-0060

Color	Red-Orange
Current - Max [Max]	700 mA
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lumens/Watt @ Current - Test	91 lm/W
Luminous Flux @ Current/Temperature	67 lm
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Size / Dimension [x]	0.177 in
Size / Dimension [x]	4.49 mm
Size / Dimension [y]	3.05 mm
Size / Dimension [y]	0.12 "
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	8 °C/W
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength	617 nm

Part	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Color	Thermal Resistance of Package [custom]	Package / Case	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Current - Max [Max]	Viewing Angle	Wavelength	Current - Test	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Lumileds LXM2-PH01-0060	91 lm/W	2.1 mm	0.083 "	Surface Mount	Red-Orange	8 °C/W	1812 (4532 Metric)	2.1 V	SMD	700 mA	125 °	617 nm	350 mA	67 lm	0.177 in	3.05 mm	0.12 "	4.49 mm
Lumileds LXM2-PD01-0040	65 lm/W	2.1 mm	0.083 "	Surface Mount	Red	8 °C/W	1812 (4532 Metric)	2.1 V	SMD	700 mA	125 °	627 nm	350 mA	48 lm	0.177 in	3.05 mm	0.12 "	4.49 mm
Lumileds LXM2-PD01-0050	72 lm/W	2.1 mm	0.083 "	Surface Mount	Red	8 °C/W	1812 (4532 Metric)	2.1 V	SMD	700 mA	125 °	627 nm	350 mA	53 lm	0.177 in	3.05 mm	0.12 "	4.49 mm
Lumileds LXM2-PH01-0070	98 lm/W	2.1 mm	0.083 "	Surface Mount	Red-Orange	8 °C/W	1812 (4532 Metric)	2.1 V	SMD	700 mA	125 °	617 nm	350 mA	72 lm	0.177 in	3.05 mm	0.12 "	4.49 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color LUXEON Rebel Color Red-Orange 617nm (Typ) 1812 (4532 Metric)
